NSN 5120-00-288-8849
Part Details | SPANNER WRENCH
5120-00-288-8849 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: 0015009194001, 0015-00-9-1-94-001, STYLE 15, GGGW665, GGG-W-665, GGGW665 TY4, GGG-W-665 TY4, AS6018 TY4, 600581, 53468AX, 53468AX, AS6018, 116557791, 11655779-1, 5120-00-288-8849, 00-288-8849, 5120002888849, 002888849
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-288-8849 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

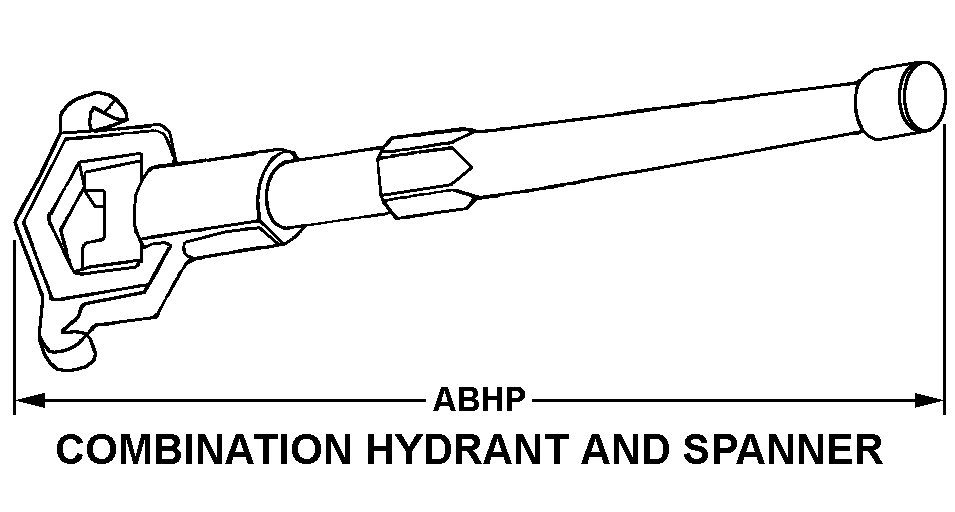

COMBINATION HYDRANT AND SPANNER
Cross Reference | NSN 5120-00-288-8849
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0015-00-9-1-94-001 | 00912 | AKRON BRASS COMPANY |
| STYLE 15 | 00912 | AKRON BRASS COMPANY |
| GGG-W-665 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-W-665 TY4 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| AS6018 TY4 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| 600581 | 02978 | L3 TECHNOLOGIES, INC.DBA COMBAT PROPULSION SYSTEMS |
| 53468AX | 45152 | OSHKOSH CORPORATION |
| 53468AX | 75Q65 | OSHKOSH DEFENSE, LLC |
| AS6018 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| 11655779-1 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5120-00-288-8849
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | COMBINATION HYDRANT AND SPANNER |
| OVERALL LENGTH | 17.500 INCHES MINIMUM |
| TORQUE CAPACITY | 8000.0 INCH-POUNDS MINIMUM |
| SPECIAL FEATURES | 5-1/4 LB MAX WEIGHT |
| SPECIFICATION/STANDARD DATA | 81343-SAE AS6018 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 4 TYPE |
