NSN 5120-00-288-8850
Part Details | SPANNER WRENCH
5120-00-288-8850 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: L3, 5120-00-288-8850, 00-288-8850, 5120002888850, 002888850
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-288-8850 | 03476 ( WRENCH, SPANNER ) |

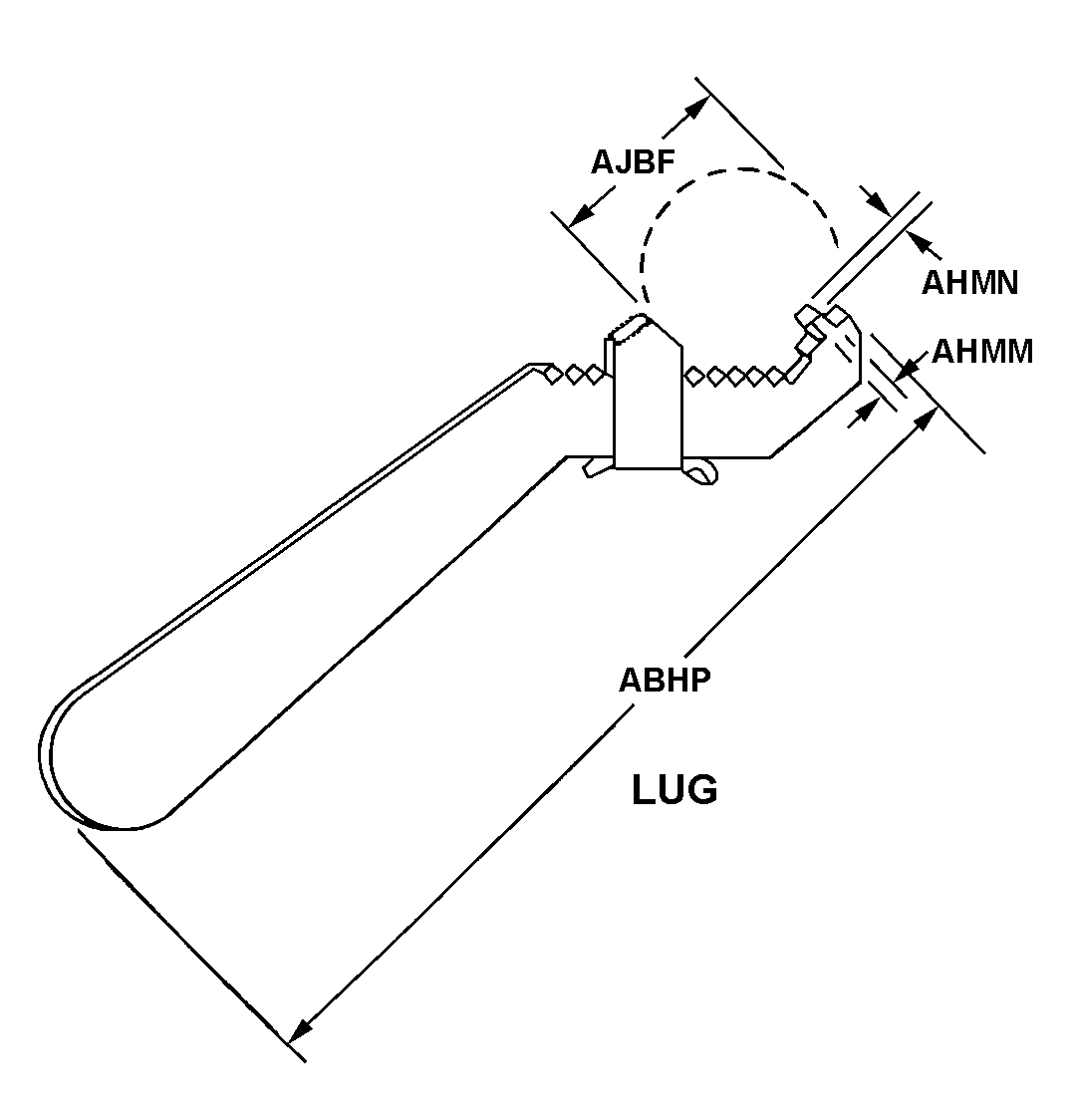

REFERENCE DRAWINGS & PICTURES
LUG
Cross Reference | NSN 5120-00-288-8850
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| L3 | 72368 | COOPER INDUSTRIES INCCRESCENT/COOPER TOOLS DIV |
Technical Data | NSN 5120-00-288-8850
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | LUG |
| OVERALL LENGTH | 10.125 INCHES NOMINAL |
| LUG WIDTH | 0.250 INCHES NOMINAL |
| LUG THICKNESS | 0.375 INCHES NOMINAL |
| CIRCLE RANGE DIAMETER | 2.000 INCHES MINIMUM AND 4.750 INCHES MAXIMUM |
