NSN 5120-00-288-9179
Part Details | SPANNER WRENCH
5120-00-288-9179 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: SW30, SW25, 451 212, 451 2-1/2, 8420750123, 5120-00-288-9179, 00-288-9179, 5120002889179, 002889179
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-288-9179 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

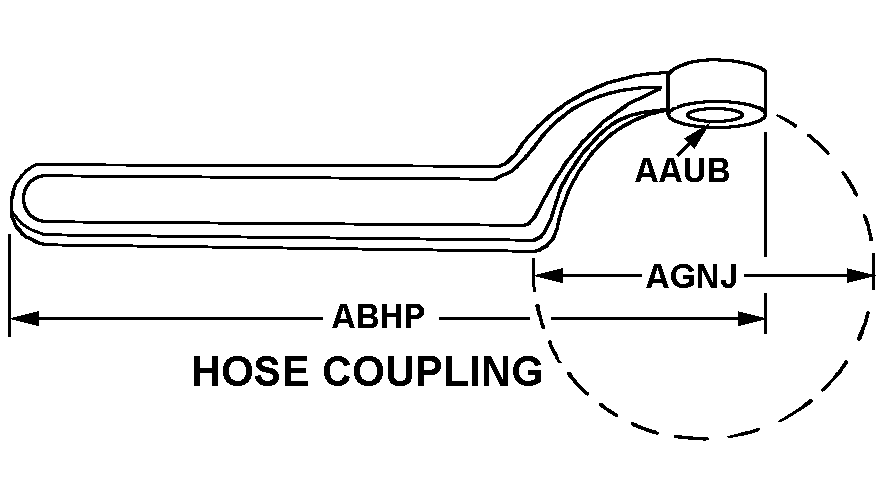

HOSE COUPLING
Cross Reference | NSN 5120-00-288-9179
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SW30 | 72661 | DIXON VALVE & COUPLING COMPANYDIV DIXON POWHATAN |
| SW25 | 72661 | DIXON VALVE & COUPLING COMPANYDIV DIXON POWHATAN |
| 451 2-1/2 | 20266 | ELKHART BRASS MANUFACTURING COMPANYINC |
| 8420750123 | 64866 | FOUNDATION EQUIPMENT CORP |
Technical Data | NSN 5120-00-288-9179
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | HOSE COUPLING |
| HOLE DIAMETER | 0.750 INCHES NOMINAL |
| OVERALL LENGTH | 10.000 INCHES NOMINAL |
| OPENING DIAMETER | 2.500 INCHES NOMINAL |
