NSN 5120-00-288-9294
Part Details | OPEN END WRENCH
5120-00-288-9294 A nonadjustable wrench having an open end wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; WRENCH, LINEMAN'S; and WRENCH, BOX AND OPEN END, COMBINATION.
Alternate Parts: 32864, 32-864, 32864, 32-864, 32864, 32-864, GGGW636, GGG-W-636, GGGW636 TY9CL1, GGG-W-636 TY9CL1, 373995, 37-3995, 212, C212, 212, 5120-00-288-9294, 00-288-9294, 5120002889294, 002889294
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-288-9294 | 17182 ( WRENCH, OPEN END ) |

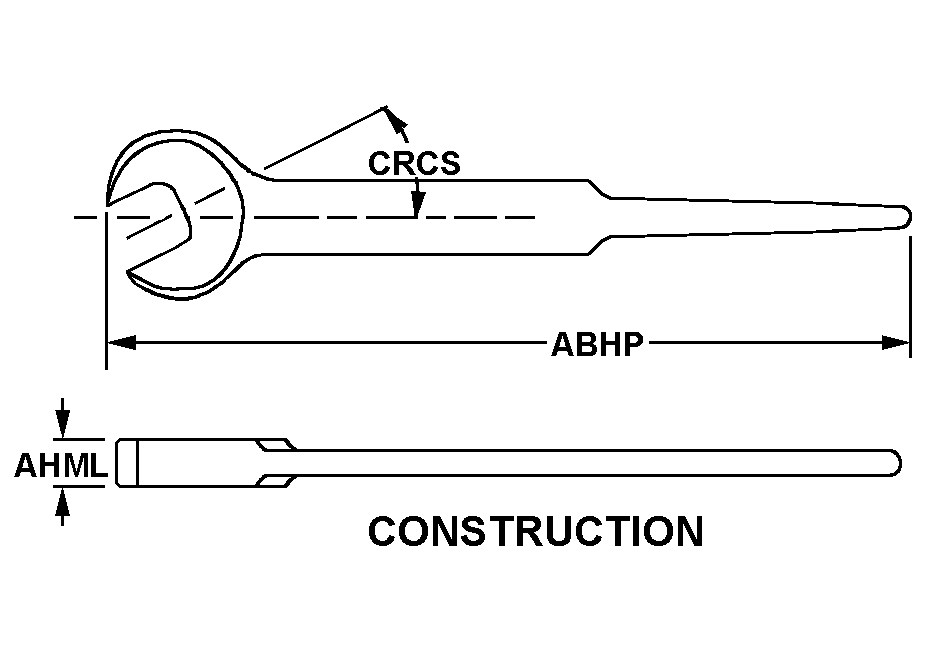

REFERENCE DRAWINGS & PICTURES
CONSTRUCTION
Cross Reference | NSN 5120-00-288-9294
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 32-864 | 636D0 | APEX TOOL GROUP, LLC |
| 32-864 | 03914 | ARMSTRONG BROS TOOL CO |
| 32-864 | 08292 | EASCO HAND TOOLS INCDIV DANAHER TOOL GROUP EASCO HAND |
| GGG-W-636 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-W-636 TY9CL1 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| 37-3995 | 05506 | MARTIN SPROCKET AND GEAR INC |
| 212 | 05506 | MARTIN SPROCKET AND GEAR INC |
| C212 | 1CV05 | STANLEY PROTO INDUSTRIAL TOOLS |
| 212 | 65814 | TRW INCHAND TOOLS DIV |
Technical Data | NSN 5120-00-288-9294
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CONSTRUCTION |
| OVERALL LENGTH | 23.000 INCHES MINIMUM AND 26.000 INCHES MAXIMUM |
| HEAD THICKNESS | 0.938 INCHES NOMINAL |
| HEAD ANGLE | 15.0 DEGREES NOMINAL |
