NSN 5120-00-288-9297
Part Details | WRENCH EXTENSION HANDLE
5120-00-288-9297 A tubular item with a lockhole which is designed to fit over and engage a locking button on the shank of items such as stub end type box wrenches, in order to furnish greater leverage.
Alternate Parts: 2889297, 288-9297, 18A, 18A, 5120-00-288-9297, 00-288-9297, 5120002889297, 002889297
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-288-9297 | 17029 ( HANDLE, EXTENSION, WRENCH ) |
REFERENCE DRAWINGS & PICTURES

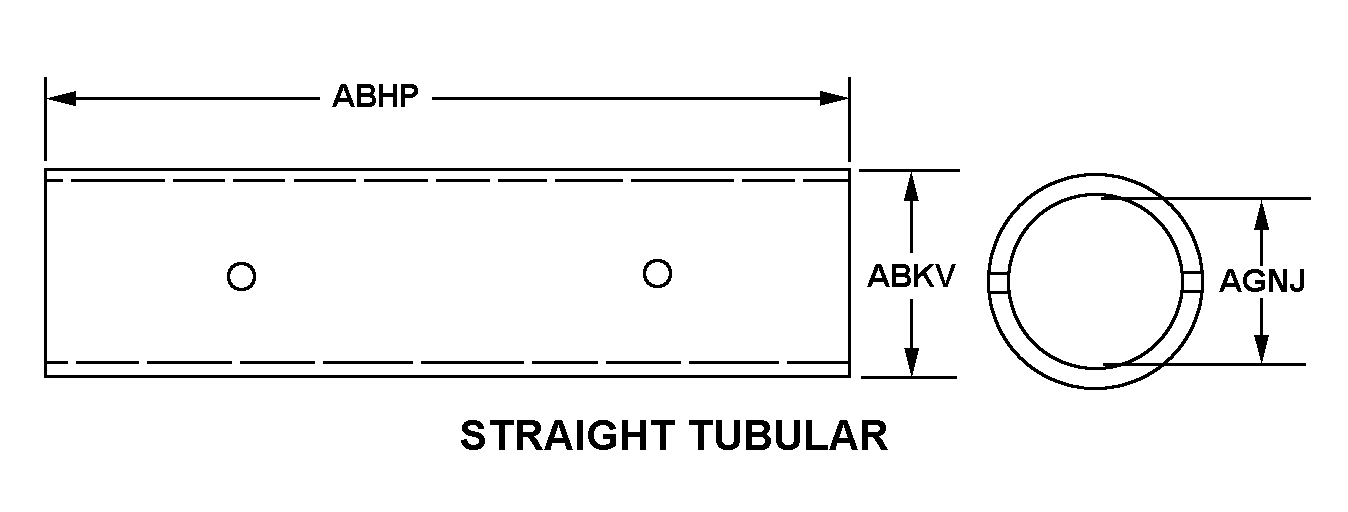

STRAIGHT TUBULAR
Cross Reference | NSN 5120-00-288-9297
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 288-9297 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| 18A | 55719 | IDSC HOLDINGS LLCDBA SNAP-ON INDUSTRIAL |
| 18A | C7127 | SNAP-ON HOLDINGS GMBHDBA SUN DIAGNOSTICS |
Technical Data | NSN 5120-00-288-9297
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT TUBULAR |
| OVERALL LENGTH | 18.000 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.875 INCHES NOMINAL |
| OPENING DIAMETER | 0.688 INCHES NOMINAL |
