NSN 5120-00-289-9035
Part Details | HAND SHOVEL
5120-00-289-9035 A tool with a broad, deep scoop or blade and a handle used primarily for digging or handling loose and bulky materials such as earth, sand, gravel, snow and the like. Excludes FIRE SHOVEL HAND and INTRENCHING TOOL, HAND. See also SPADE AND SPOON (as modified).
Alternate Parts: GGGS326, GGG-S-326, 5120002899035, 5120-00-289-9035, GGGS326 TY4CLBST3SZ2, GGG-S-326 TY4CLBST3SZ2, 45019, 45112, 45-112, 5120-00-289-9035, 00-289-9035, 5120002899035, 002899035
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-289-9035 | 05411 ( SHOVEL, HAND ) |
REFERENCE DRAWINGS & PICTURES

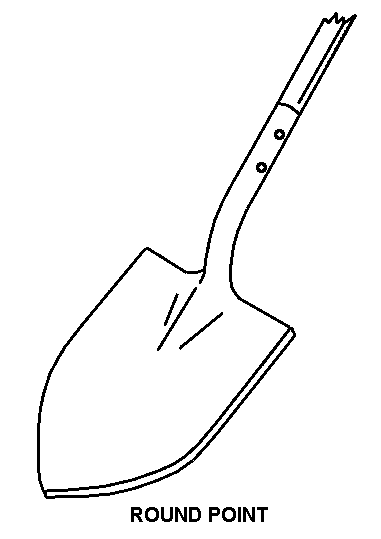

ROUND POINT
Cross Reference | NSN 5120-00-289-9035
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GGG-S-326 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| 5120-00-289-9035 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| GGG-S-326 TY4CLBST3SZ2 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| 45019 | 78925 | UNIONTOOLS INC |
| 45-112 | 78925 | UNIONTOOLS INC |
Technical Data | NSN 5120-00-289-9035
| Characteristic | Specifications |
|---|---|
| HANDLE TYPE | LONG STYLE |
| DIGGING IMPLEMENT STYLE | ROUND POINT |
| HANDLE LENGTH | 49.000 INCHES |
| SIZE DESIGNATOR | 2 |
| BLADE LENGTH | 11.500 INCHES MINIMUM AND 12.500 INCHES MAXIMUM |
| BLADE CONSTRUCTION TYPE | SMOOTH BACK |
| BLADE WIDTH | 9.500 INCHES MINIMUM AND 10.250 INCHES MAXIMUM |
| SPECIAL FEATURES | SOLID SHANK; NO STEP ON TOP SHOULDER OF BLADE; NO PROTECTIVE COATING APPLIED TO HANDLE |
