NSN 5120-00-289-9381
Part Details | SPANNER WRENCH
5120-00-289-9381 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: 9523465, 9523465, 9523465, 5120-00-289-9381, 00-289-9381, 5120002899381, 002899381
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-289-9381 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

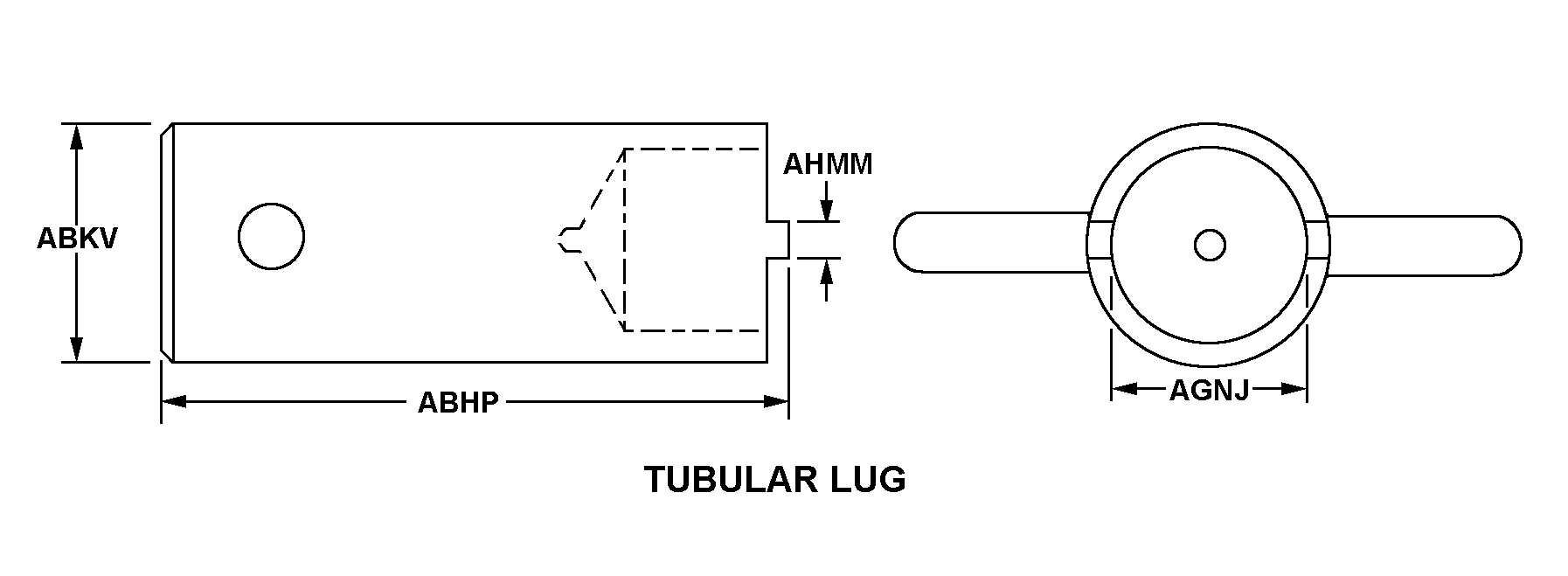

TUBULAR LUG
Cross Reference | NSN 5120-00-289-9381
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9523465 | 73842 | GOODYEAR TIRE AND RUBBER CO THE |
| 9523465 | 25500 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 9523465 | 0B9R9 | MEGGITT AIRCRAFT BRAKING SYSTEMSCORPORATION |
Technical Data | NSN 5120-00-289-9381
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TUBULAR LUG |
| OVERALL LENGTH | 2.281 INCHES MINIMUM AND 2.343 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| OPENING DIAMETER | 0.248 INCHES MINIMUM AND 0.252 INCHES MAXIMUM |
| LUG WIDTH | 0.080 INCHES NOMINAL |
| SPECIAL FEATURES | LUG LG 0.062 IN.;OPENING DEPTH 1.5 IN. |
