NSN 5120-00-293-0096
Part Details | SPANNER WRENCH
5120-00-293-0096 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: 855719101763, 85-57-19-10-1763, DWG5120002930096, DWG5120-00-293-0096, CTM3532, CTM-3532, 11676, 0116760000, 5120-00-293-0096, 00-293-0096, 5120002930096, 002930096
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-293-0096 | 03476 ( WRENCH, SPANNER ) |

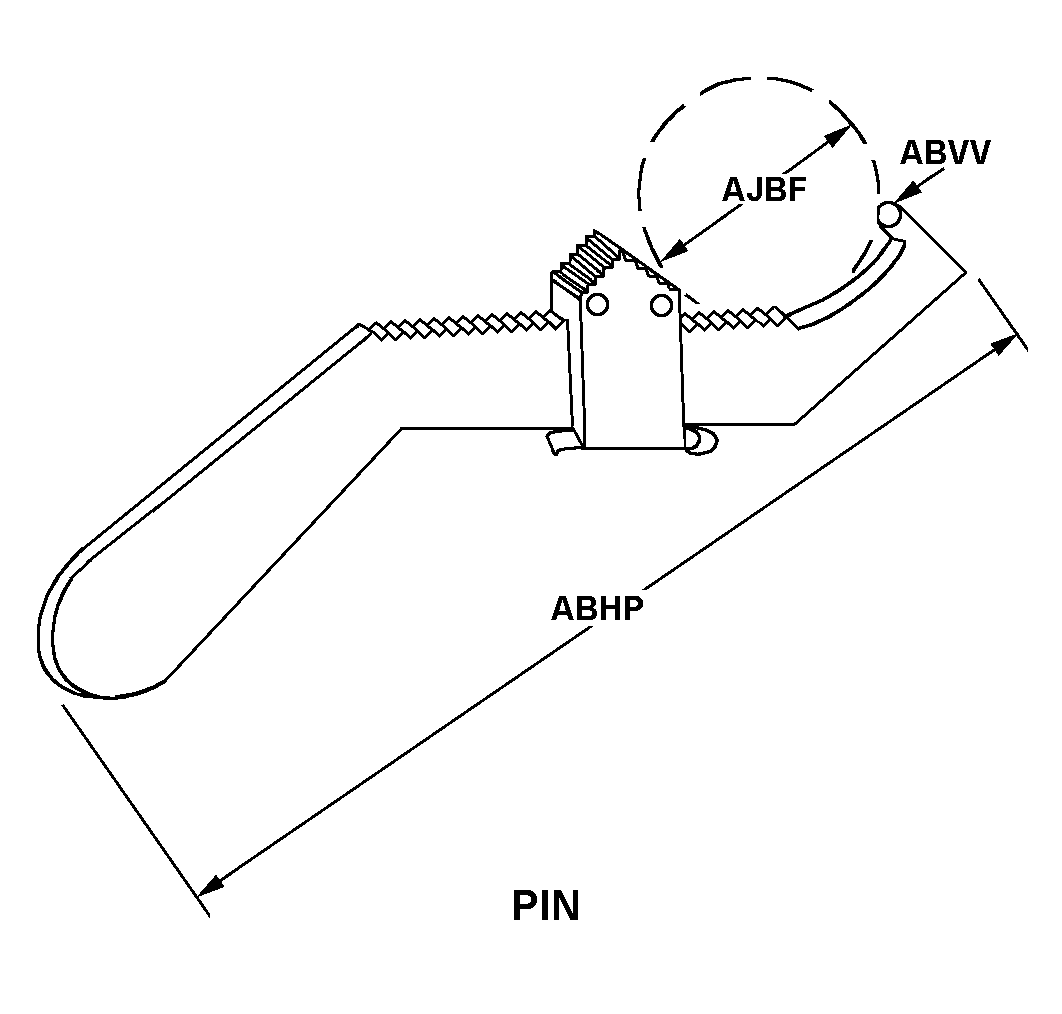

REFERENCE DRAWINGS & PICTURES
PIN
Cross Reference | NSN 5120-00-293-0096
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 85-57-19-10-1763 | K6451 | BAE SYSTEMS MARINE LIMITED |
| DWG5120-00-293-0096 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| CTM-3532 | 63003 | HUNTINGTON PARTNERS, INC.DBA CONTINENTAL TOOL & MFG. |
| 11676 | 84561 | PARKER-HANNIFIN CORPORATIONDBA CYLINDER DIV |
| 0116760000 | 84561 | PARKER-HANNIFIN CORPORATIONDBA CYLINDER DIV |
Technical Data | NSN 5120-00-293-0096
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PIN |
| OVERALL LENGTH | 7.000 INCHES NOMINAL |
| PIN DIAMETER | 0.187 INCHES NOMINAL |
| CIRCLE RANGE DIAMETER | 0.750 INCHES MINIMUM AND 2.000 INCHES MAXIMUM |
| SPECIAL FEATURES | IN ACCORDANCE WITH GSA DRAWING NUMBER 5120-00-293-0096, DATED SEPTEMBER 26, 1973 |
| END ITEM IDENTIFICATION | PARKER HYDRAULIC TIE ROD CYLINDERS |
| FUNCTIONAL DESCRIPTION | USED TO INSTALL/REMOVE GLAND |
