NSN 5120-00-293-0117
Part Details | BOX WRENCH
5120-00-293-0117 A nonadjustable wrench having a box wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; and WRENCH, BOX AND OPEN END, COMBINATION.
Alternate Parts: GGGW636, GGG-W-636, GGGW636 TY1CL2ST1, GGG-W-636 TY1CL2ST1, 5120-00-293-0117, 00-293-0117, 5120002930117, 002930117
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-293-0117 | 03555 ( WRENCH, BOX ) |
REFERENCE DRAWINGS & PICTURES

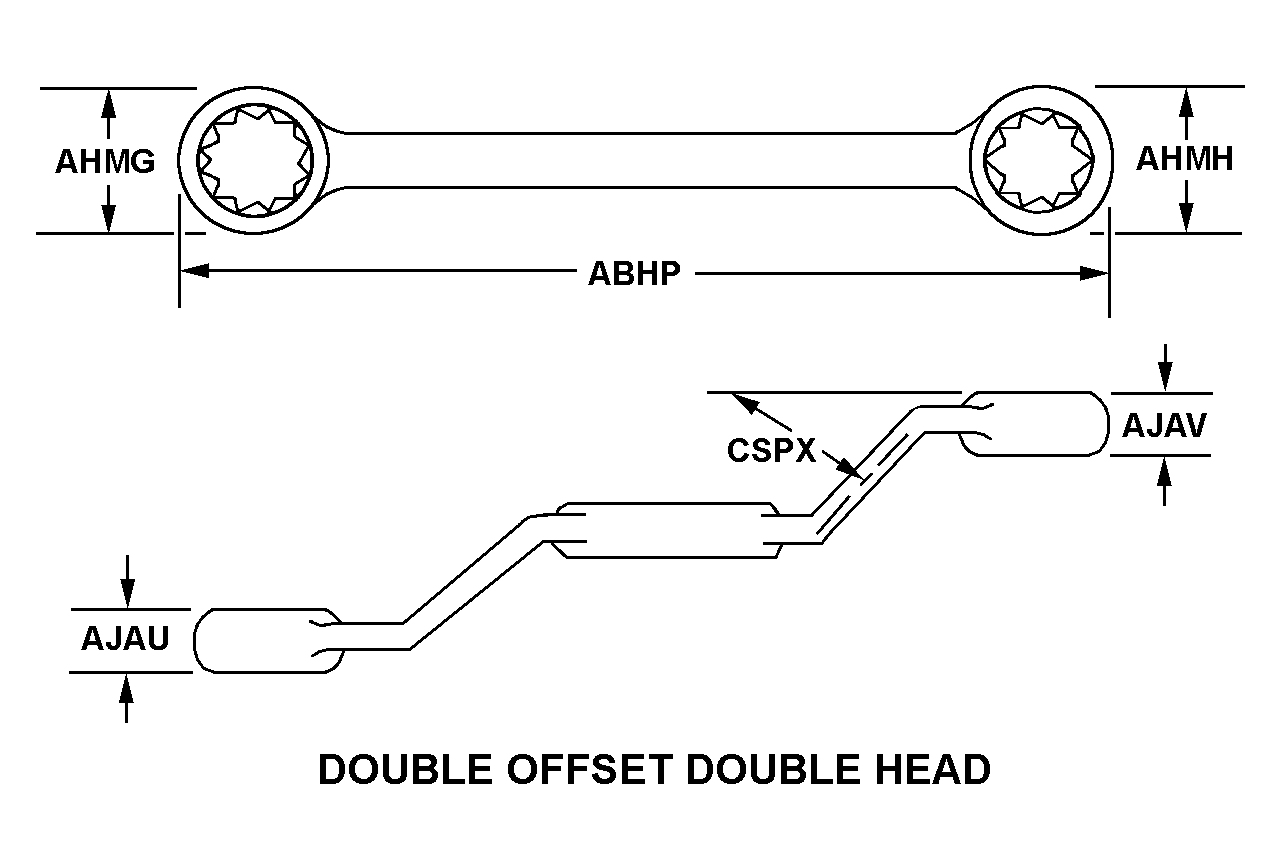

DOUBLE OFFSET DOUBLE HEAD
Cross Reference | NSN 5120-00-293-0117
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GGG-W-636 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-W-636 TY1CL2ST1 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
Technical Data | NSN 5120-00-293-0117
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DOUBLE OFFSET DOUBLE HEAD |
| OVERALL LENGTH | 17.000 INCHES MINIMUM AND 19.000 INCHES MAXIMUM |
| LARGE END OUTSIDE DIAMETER | 1.906 INCHES MAXIMUM |
| SMALL END OUTSIDE DIAMETER | 1.625 INCHES MAXIMUM |
| LARGE END HEAD THICKNESS | 0.812 INCHES MAXIMUM |
| SMALL END HEAD THICKNESS | 0.750 INCHES MAXIMUM |
| WRENCHING END OFFSET ANGLE | 40.0 DEGREES MINIMUM AND 65.0 DEGREES MAXIMUM |
| SPECIAL MARKINGS | WRENCH SIZE |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 2 CLASS AND 1 STYLE |
