NSN 5120-00-293-0186
Part Details | RETAINING RING PLIERS
5120-00-293-0186 See also PLIERS and PLIERS (as modified).
Alternate Parts: B107.500, B107.19, 496H1204, 496H120-4, J684301, J-6843-01, J6843, J-6843, 924365, GGGP480, GGG-P-480, GGGP480 TY1CL3STASZ133, GGG-P-480 TY1CL3STASZ1-3-3, B107.19 TY4CL2, B107.19 TY1CL3STA, 140100, 140100, 57220001416966ALTBPC34, 572-2000-1416966ALTBPC34, 42003174865PC4, 4200-3174865PC4, 090012, 0900-12, 7R, IR120H, IR-120H, 090012, 0900-12, S6700, 7082060, 496H1204, 496H120-4, 5120-00-293-0186, 00-293-0186, 5120002930186, 002930186
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-293-0186 | 19019 ( PLIERS, RETAINING RING ) |
REFERENCE DRAWINGS & PICTURES

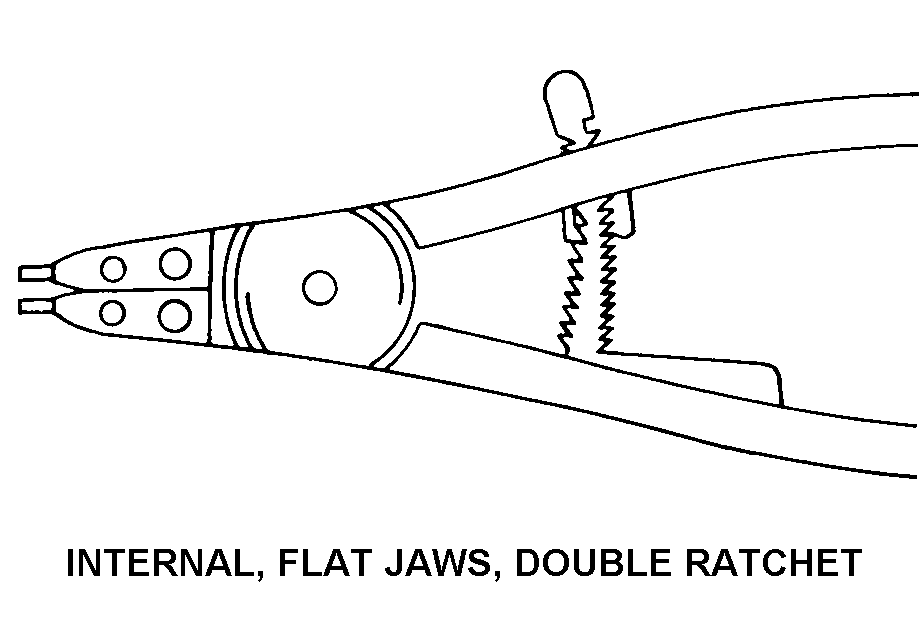

INTERNAL, FLAT JAW, DOUBLE RATCHET
Cross Reference | NSN 5120-00-293-0186
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B107.500 | 05047 | AMERICAN SOCIETY OF MECHANICALENGINEERS, THE |
| B107.19 | 05047 | AMERICAN SOCIETY OF MECHANICALENGINEERS, THE |
| 496H120-4 | 70487 | AMERIDRIVES INTERNATIONAL, LLCDBA AMERIDRIVES COUPLINGS |
| J-6843-01 | 33287 | BOSCH AUTOMOTIVE SERVICE SOLUTIONSINC. |
| J-6843 | 33287 | BOSCH AUTOMOTIVE SERVICE SOLUTIONSINC. |
| 924365 | 0AHP5 | CURTISS-WRIGHT CONTROLS, INCDIV SENSORS & CONTROLS |
| GGG-P-480 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-P-480 TY1CL3STASZ1-3-3 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| B107.19 TY4CL2 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| B107.19 TY1CL3STA | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| 140100 | 0RV00 | HORIZON TOOL INC |
| 140100 | 35RZ7 | HORIZON TOOL INC. |
| 572-2000-1416966ALTBPC34 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 4200-3174865PC4 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 0900-12 | 07382 | ROTOR CLIP COMPANY INC.DBA ROTOR CLAMP |
| 7R | 85688 | STRIDE TOOL INC.DBA STRIDE MILBAR COMPANY |
| IR-120H | 85688 | STRIDE TOOL INC.DBA STRIDE MILBAR COMPANY |
| 0900-12 | 79136 | TRUARC COMPANY LLCDBA WALDES TRUARC |
| S6700 | 79136 | TRUARC COMPANY LLCDBA WALDES TRUARC |
| 7082060 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
| 496H120-4 | 03966 | ZURN INDUSTRIES INC |
Technical Data | NSN 5120-00-293-0186
| Characteristic | Specifications |
|---|---|
| PLIERS STYLE DESIGNATOR | INTERNAL, FLAT JAW, DOUBLE RATCHET |
| TIP ANGLE IN DEG | 0.0 |
| RING SIZE/PLIERS TIP DIAMETER | 0.120 IN. DIA TIP |
| SPECIAL FEATURES | WITH RATCHET; WITHOUT ADJUSTABLE STOP |
| ENVIRONMENTAL ATTRIBUTE CODE | PLASTICS REMOVAL IN THE MARINE ENVIRONMENT (PRIME) PRODUCT |
| SPECIFICATION/STANDARD DATA | 05047-ASME B107.500 TO B107.19 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 4 TYPE AND 2 CLASS |
