NSN 5120-00-293-0230
Part Details | RATCHET WRENCH
5120-00-293-0230 A single or double end wrench having a reversible or nonreversible ratchet socket on one or both ends. One end may have a fixed socket or handgrip. It may have a wrench opening through the handle. For items with drive tang, see HANDLE, SOCKET WRENCH.
Alternate Parts: 7366, P61, P-61, CPR109375, 5120-00-293-0230, 00-293-0230, 5120002930230, 002930230
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-293-0230 | 30273 ( WRENCH, RATCHET ) |
REFERENCE DRAWINGS & PICTURES

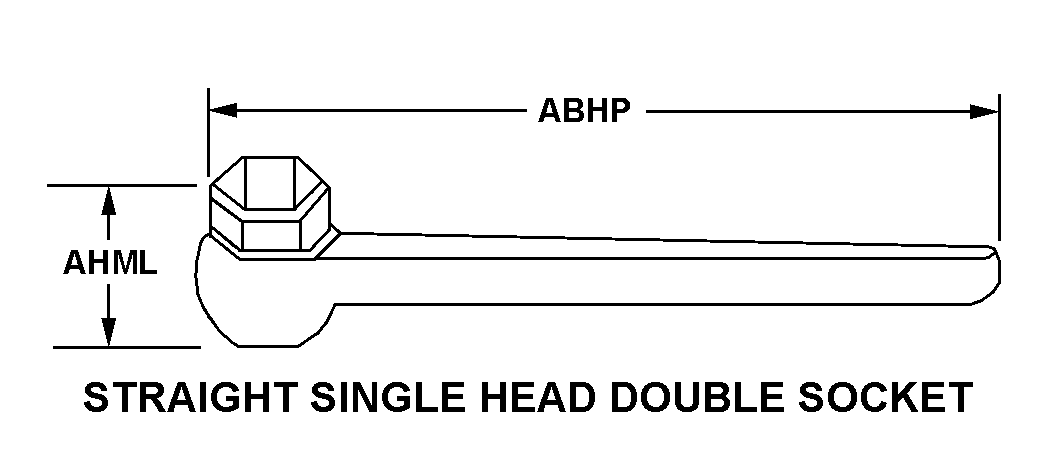

STRAIGHT SINGLE HEAD DOUBLE SOCKET
Cross Reference | NSN 5120-00-293-0230
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7366 | 45225 | BOSCH AUTOMOTIVE SERVICE SOLUTIONSINC. |
| P-61 | 45225 | BOSCH AUTOMOTIVE SERVICE SOLUTIONSINC. |
| CPR109375 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5120-00-293-0230
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT SINGLE HEAD DOUBLE SOCKET |
| OVERALL LENGTH | 10.000 INCHES NOMINAL |
| HEAD THICKNESS | 2.000 INCHES NOMINAL |
| FEATURES PROVIDED | REVERSIBLE RATCHET |
