NSN 5120-00-293-0303
Part Details | TIMBER WEDGE
5120-00-293-0303 Refer to Reference Drawing Group AD before using item name.
Alternate Parts: B209.3, B107.43, AA336, A-A-336, GGGW220, GGG-W-220, 5948A1, 08010, 5120-00-293-0303, 00-293-0303, 5120002930303, 002930303
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-293-0303 | 05651 ( WEDGE, TIMBER ) |
REFERENCE DRAWINGS & PICTURES

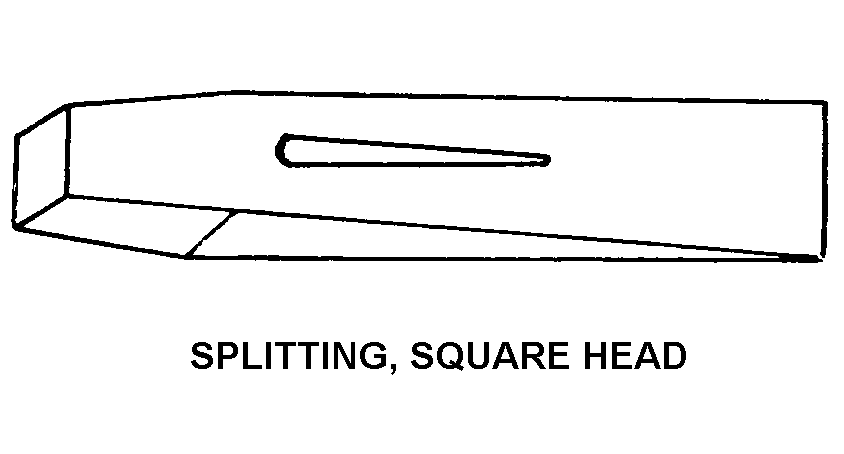

SPLITTING, SQUARE HEAD
Cross Reference | NSN 5120-00-293-0303
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B209.3 | 05047 | AMERICAN SOCIETY OF MECHANICALENGINEERS, THE |
| B107.43 | 05047 | AMERICAN SOCIETY OF MECHANICALENGINEERS, THE |
| A-A-336 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| GGG-W-220 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| 5948A1 | 39428 | MCMASTER-CARR SUPPLY COMPANY |
| 08010 | 79202 | WARWOOD TOOL COMPANY |
Technical Data | NSN 5120-00-293-0303
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| WEDGE STYLE DESIGNATOR | SPLITTING, SQUARE HEAD |
| WEIGHT | 3.000 POUNDS |
| OVERALL LENGTH | 7.500 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 05047-ASME B107.43 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
