NSN 5120-00-293-0316
Part Details | SPANNER WRENCH
5120-00-293-0316 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: 7308, CT685, 5F9693, 2B1422, 2B-1422, GGGW665, GGG-W-665, GGGW665 TY1CL2, GGG-W-665 TY1CL2, AS6018 TY1CL2, AS6018, 5120-00-293-0316, 00-293-0316, 5120002930316, 002930316
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-293-0316 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

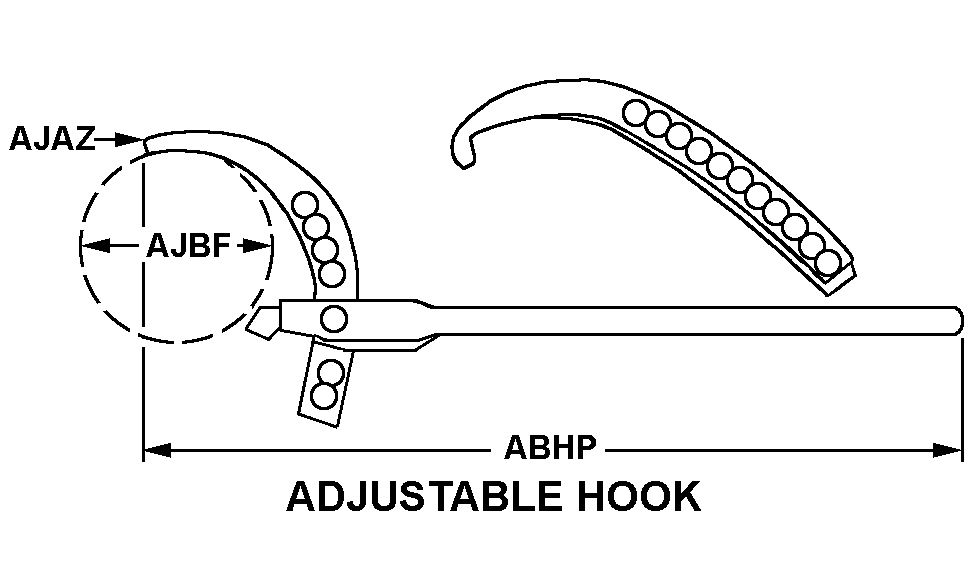

ADJUSTABLE HOOK
Cross Reference | NSN 5120-00-293-0316
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7308 | 45225 | BOSCH AUTOMOTIVE SERVICE SOLUTIONSINC. |
| CT685 | 45225 | BOSCH AUTOMOTIVE SERVICE SOLUTIONSINC. |
| 5F9693 | 11083 | CATERPILLAR INC.DBA CATERPILLAR |
| 2B-1422 | 11083 | CATERPILLAR INC.DBA CATERPILLAR |
| GGG-W-665 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-W-665 TY1CL2 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| AS6018 TY1CL2 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| AS6018 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Technical Data | NSN 5120-00-293-0316
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ADJUSTABLE HOOK |
| OVERALL LENGTH | 22.000 INCHES MINIMUM |
| HOOK THICKNESS | 0.375 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| CIRCLE RANGE DIAMETER | 2.000 INCHES MINIMUM AND 12.000 INCHES MAXIMUM |
| FEATURES PROVIDED | REPLACEABLE WRENCHING FEATURE |
| SPECIAL FEATURES | TWO INTERCHANGEABLE HOOKS; ONE 3/8 IN. THICK, OTHER 3/4 IN. THICK; EACH WITH 11 HOLES |
| SPECIFICATION/STANDARD DATA | 81343-SAE AS6018 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 2 CLASS |
