NSN 5120-00-293-0479
Part Details | HAND CAULKING TOOL
5120-00-293-0479 Refer to Reference Drawing Group A before using item name. See also CAULKING IRON, WOOD; HAWSING IRON and YARNING IRON.
Alternate Parts: GGGC135, GGG-C-135, GGGC135 CL2ST3, GGG-C-135 CL2ST3, 30007, 012, 5120-00-293-0479, 00-293-0479, 5120002930479, 002930479
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-293-0479 | 04454 ( CAULKING TOOL, HAND ) |
REFERENCE DRAWINGS & PICTURES

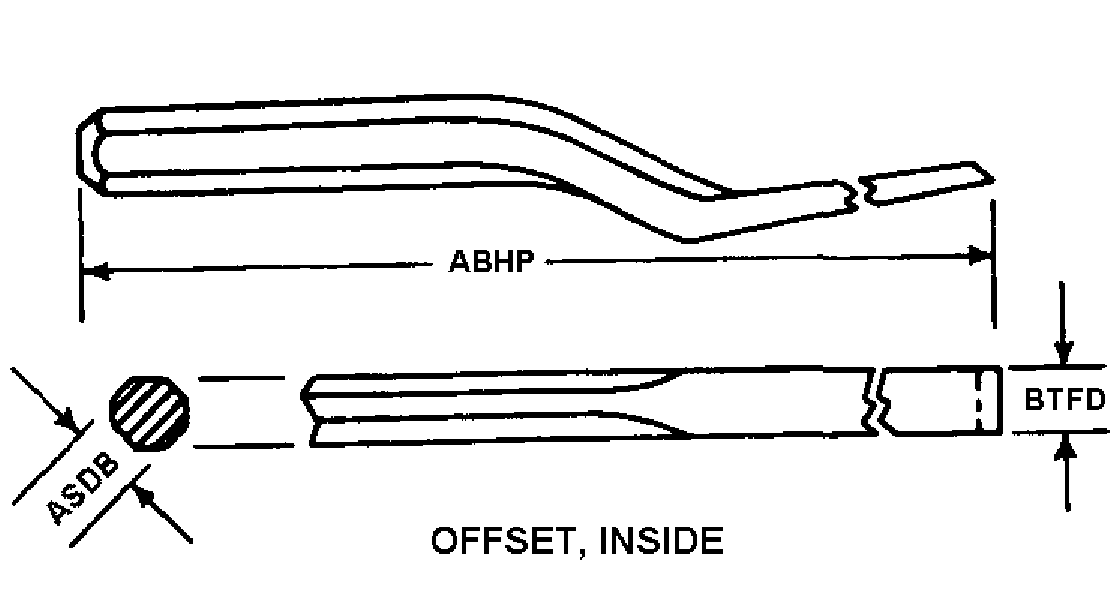

OFFSET, INSIDE
Cross Reference | NSN 5120-00-293-0479
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GGG-C-135 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-C-135 CL2ST3 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| 30007 | 91916 | MEPHISTO TOOL CO INC |
| 012 | 91916 | MEPHISTO TOOL CO INC |
Technical Data | NSN 5120-00-293-0479
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OFFSET, INSIDE |
| OVERALL LENGTH | 7.250 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.625 INCHES NOMINAL |
| NOSE END WIDTH | 0.750 INCHES NOMINAL |
