NSN 5120-00-293-0987
Part Details | SOCKET WRENCH HANDLE RATCHET HEAD
5120-00-293-0987 A reversible ratcheting mechanism having a square external end designed to fit into the internal end of a wrench socket or attachment, and has provisions for a round bar grip, but does not include the bar. When furnished with a bar, see HANDLE, SOCKET WRENCH. Excludes RATCHET ATTACHMENT, SOCKET WRENCH.
Alternate Parts: 8H8545, GGGW641, GGG-W-641, GGGW641 TY3CL2, GGG-W-641 TY3CL2, 5120-00-293-0987, 00-293-0987, 5120002930987, 002930987
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-293-0987 | 18872 ( RATCHET HEAD, SOCKET WRENCH HANDLE ) |

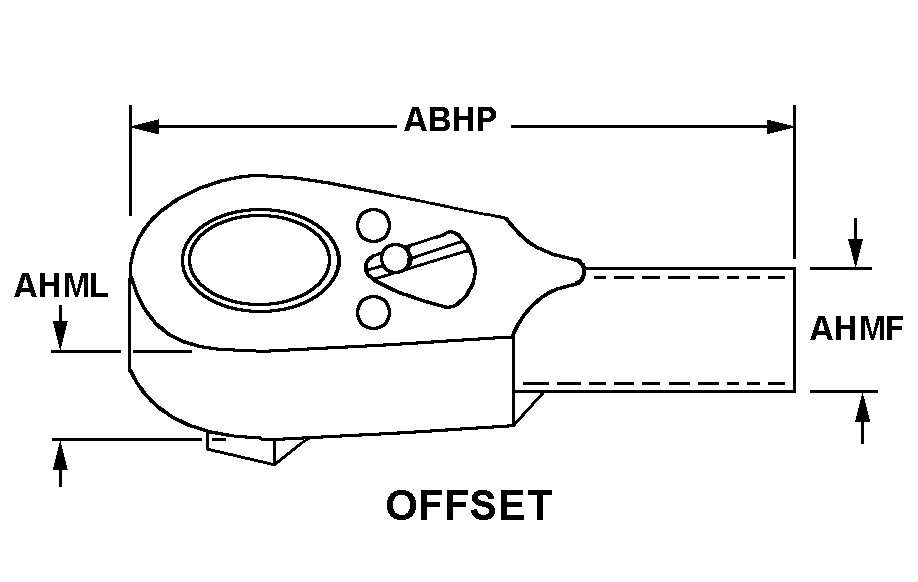

REFERENCE DRAWINGS & PICTURES
OFFSET
Cross Reference | NSN 5120-00-293-0987
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8H8545 | 11083 | CATERPILLAR INC.DBA CATERPILLAR |
| GGG-W-641 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-W-641 TY3CL2 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
Technical Data | NSN 5120-00-293-0987
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OFFSET |
| OVERALL LENGTH | 6.000 INCHES NOMINAL |
| HANDLE HOLE DIAMETER | 0.812 INCHES NOMINAL |
| HEAD THICKNESS | 1.125 INCHES MAXIMUM |
| FEATURES PROVIDED | REVERSIBLE RATCHET |
| NONDEFINITIVE SPEC/STD DATA | 3 TYPE AND 2 CLASS |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY ITEM NAME AND PAC STYLE |
