NSN 5120-00-293-1069
Part Details | SPANNER WRENCH
5120-00-293-1069 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: 81075, 81075, 56581075, 565-81075, 5120-00-293-1069, 00-293-1069, 5120002931069, 002931069
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-293-1069 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

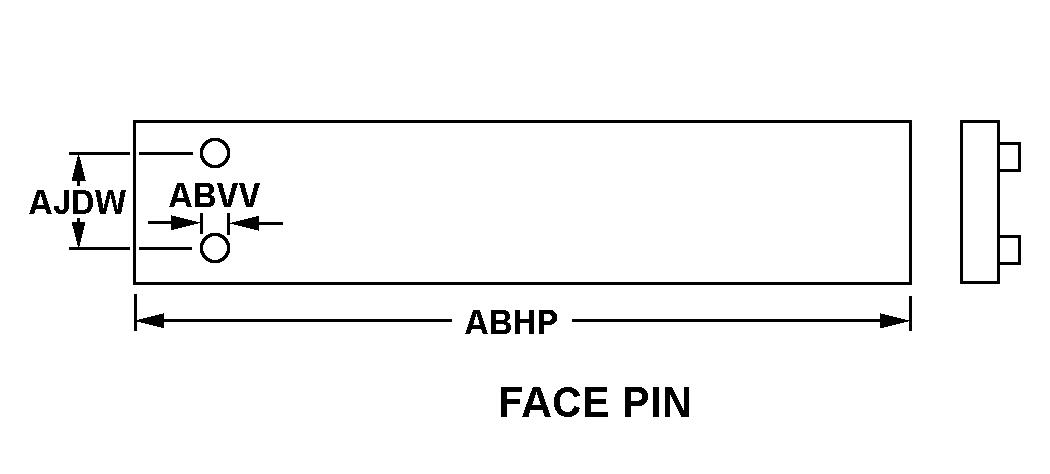

FACE PIN
Cross Reference | NSN 5120-00-293-1069
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 81075 | 09384 | KINGSTON ACQUISITION, LLCDBA CEC VIBRATION PRODUCTS |
| 81075 | 14028 | SYPRIS ELECTRONICS, LLC |
| 565-81075 | 20890 | VOLUMETRICS |
Technical Data | NSN 5120-00-293-1069
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FACE PIN |
| OVERALL LENGTH | 3.000 INCHES NOMINAL |
| PIN DIAMETER | 0.125 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN PINS | 0.625 INCHES NOMINAL |
| SPECIAL FEATURES | 180 DEG ANGLE BETWEEN PINS;0.190 IN. PIN LG |
