NSN 5120-00-293-1072
Part Details | SPANNER WRENCH
5120-00-293-1072 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: 650179, 650157, 5120-00-293-1072, 00-293-1072, 5120002931072, 002931072
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-293-1072 | 03476 ( WRENCH, SPANNER ) |

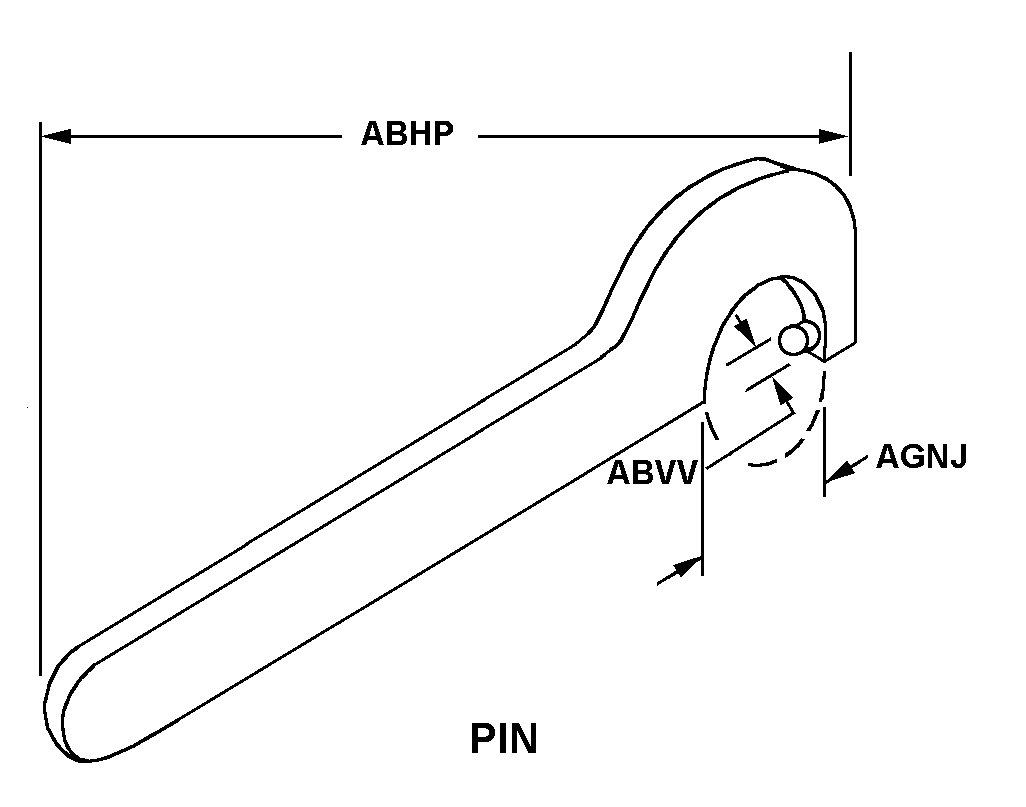

REFERENCE DRAWINGS & PICTURES
PIN
Cross Reference | NSN 5120-00-293-1072
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 650179 | 82577 | RAYTHEON COMPANYDBA RAYTHEON |
| 650157 | 82577 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5120-00-293-1072
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PIN |
| OVERALL LENGTH | 6.179 INCHES MINIMUM AND 6.200 INCHES MAXIMUM |
| PIN DIAMETER | 0.045 INCHES MINIMUM AND 0.046 INCHES MAXIMUM |
| OPENING DIAMETER | 1.984 INCHES NOMINAL |
