NSN 5120-00-293-1074
Part Details | SPANNER WRENCH
5120-00-293-1074 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: SWE84349, 84349, SWE84349, 5120-00-293-1074, 00-293-1074, 5120002931074, 002931074
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-293-1074 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

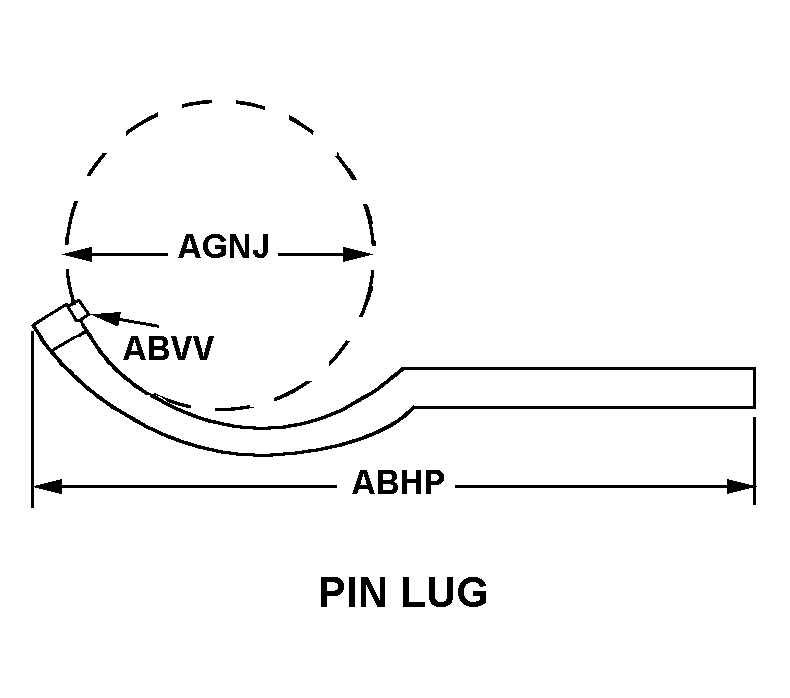

PIN LUG
Cross Reference | NSN 5120-00-293-1074
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SWE84349 | 23016 | BASF CATALYSTS LLC |
| 84349 | 87641 | HYDRATIGHT OPERATIONS, INC. |
| SWE84349 | 87641 | HYDRATIGHT OPERATIONS, INC. |
Technical Data | NSN 5120-00-293-1074
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PIN LUG |
| OVERALL LENGTH | 12.438 INCHES NOMINAL |
| PIN DIAMETER | 0.375 INCHES NOMINAL |
| OPENING DIAMETER | 11.625 INCHES NOMINAL |
