NSN 5120-00-293-1288
Part Details | SOCKET WRENCH
5120-00-293-1288 A wrench consisting of one or more sockets, integral with shank(s) or body. It may not be furnished with a handle when the handle is removable or when it is the "double end socket" and "single socket bar" types, each designed for use with the other or similar items. Excludes SOCKET, SOCKET WRENCH.
Alternate Parts: TR3X, 5120-00-293-1288, 00-293-1288, 5120002931288, 002931288
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-293-1288 | 03520 ( WRENCH, SOCKET ) |
REFERENCE DRAWINGS & PICTURES

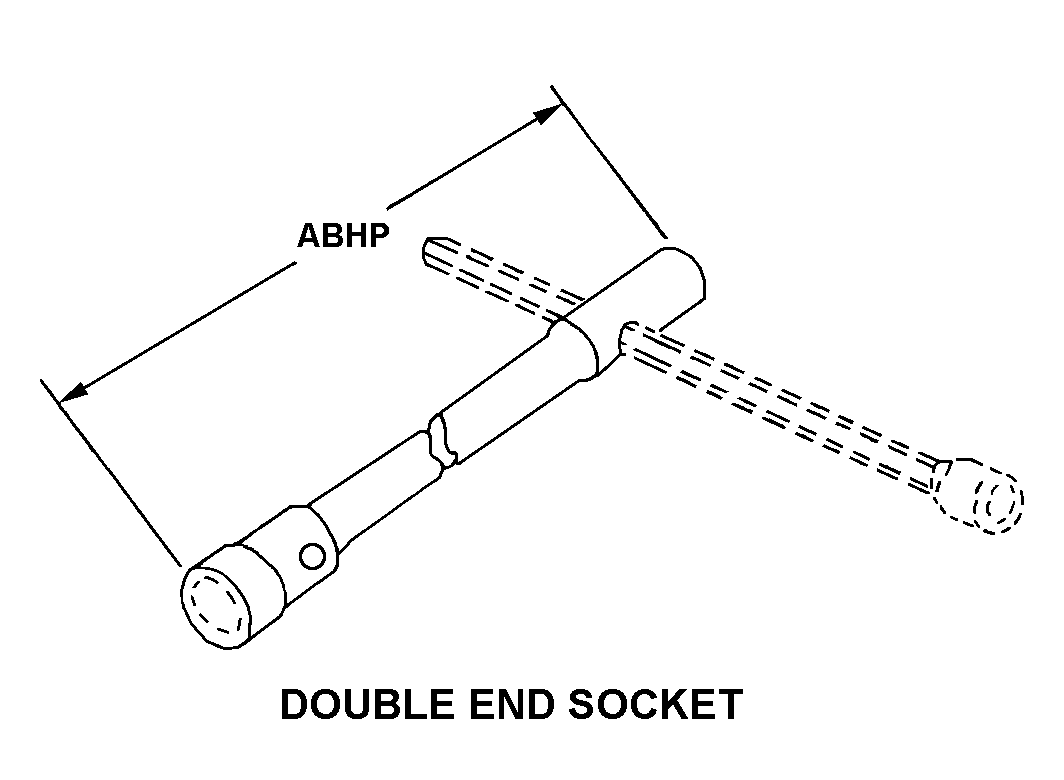

DOUBLE END SOCKET
Cross Reference | NSN 5120-00-293-1288
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| TR3X | 75204 | SUMMIT TOOL COMPANYDBA KEN-TOOLS |
Technical Data | NSN 5120-00-293-1288
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DOUBLE END SOCKET |
| OVERALL LENGTH | 16.000 INCHES NOMINAL |
| FUNCTIONAL DESCRIPTION | USED TO TIGHTEN/LOOSEN TRUCK LUG NUTS; USE WITH KEN-TOOL TR5 WRENCH HANDLE |
