NSN 5120-00-293-1315
Part Details | SPANNER WRENCH
5120-00-293-1315 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: PWA8034, 5120-00-293-1315, 00-293-1315, 5120002931315, 002931315
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-293-1315 | 03476 ( WRENCH, SPANNER ) |

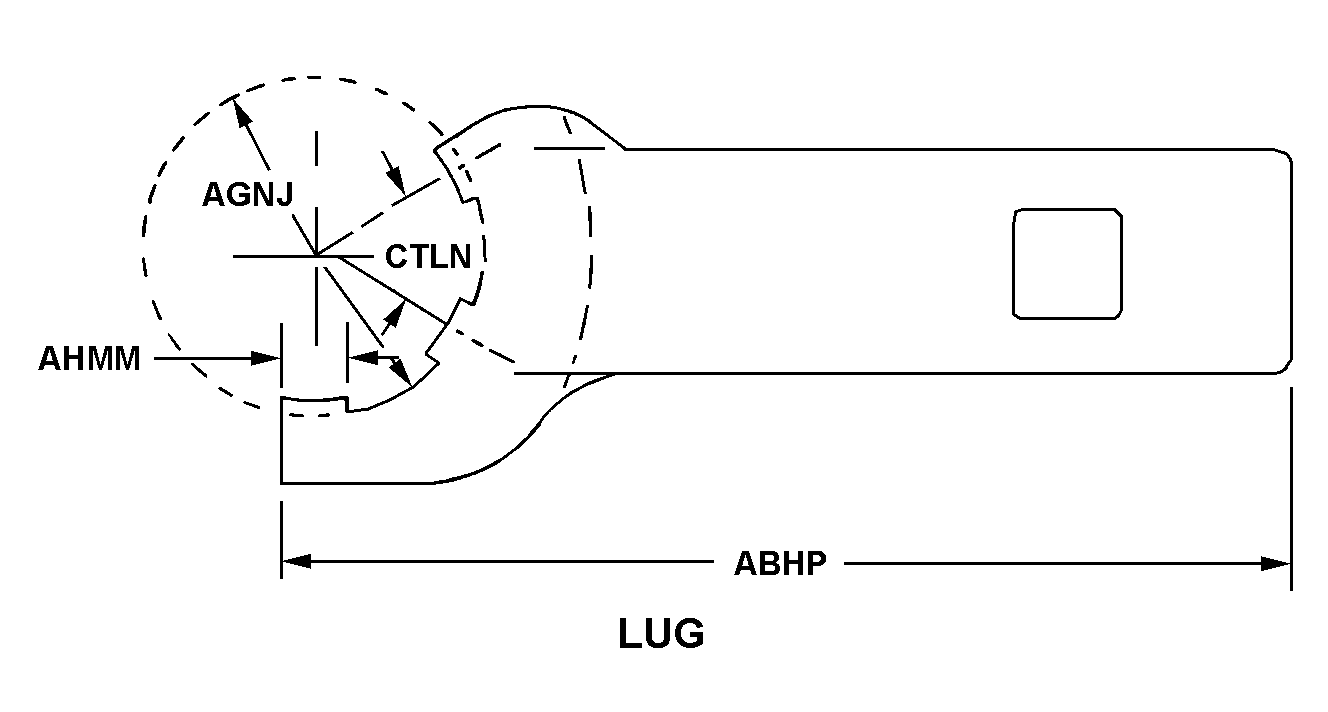

REFERENCE DRAWINGS & PICTURES
LUG
Cross Reference | NSN 5120-00-293-1315
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PWA8034 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
Technical Data | NSN 5120-00-293-1315
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | LUG |
| OVERALL LENGTH | 4.000 INCHES NOMINAL |
| OPENING DIAMETER | 1.375 INCHES NOMINAL |
| LUG THICKNESS | 0.207 INCHES NOMINAL |
| ANGLE BETWEEN LUGS | 30.0 DEGREES NOMINAL |
| SPECIAL FEATURES | 0.513 IN. SQ. HOLE IN HANDLE |
