NSN 5120-00-293-1514
Part Details | SPANNER WRENCH
5120-00-293-1514 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: W8008638PC3, WW5329698PC3, DD692S4101136PC3, DD692S4101-136PC3, DD445S4101216PC3, DD445S4101-216PC3, 5120-00-293-1514, 00-293-1514, 5120002931514, 002931514
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-293-1514 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

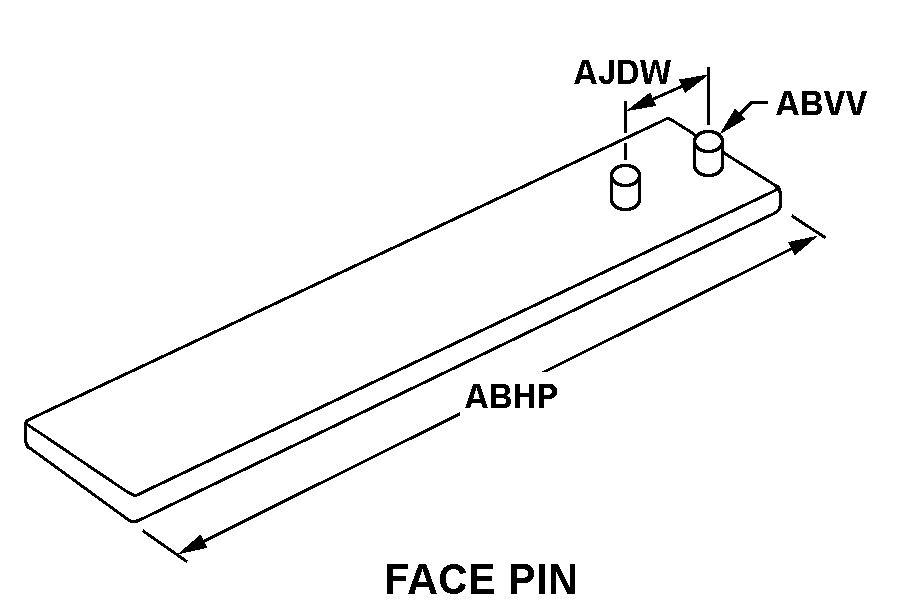

FACE PIN
Cross Reference | NSN 5120-00-293-1514
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| W8008638PC3 | 24446 | GENERAL ELECTRIC COMPANY |
| WW5329698PC3 | 24446 | GENERAL ELECTRIC COMPANY |
| DD692S4101-136PC3 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| DD445S4101-216PC3 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 5120-00-293-1514
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FACE PIN |
| OVERALL LENGTH | 7.000 INCHES NOMINAL |
| PIN DIAMETER | 0.344 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN PINS | 1.750 INCHES NOMINAL |
| SPECIAL MARKINGS | FOR THRUST NUT,CRU. T8 |
