NSN 5120-00-293-1602
Part Details | SPANNER WRENCH
5120-00-293-1602 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: 10, 00100P0194001, 0010-0P-0-1-94-001, STYLE10, 943A7534, GGGW665, GGG-W-665, GGGW665 TY5, GGG-W-665 TY5, AS6018 TY5, 10A682330, 10A68-2330, 874, AS6018, 5120-00-293-1602, 00-293-1602, 5120002931602, 002931602
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-293-1602 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

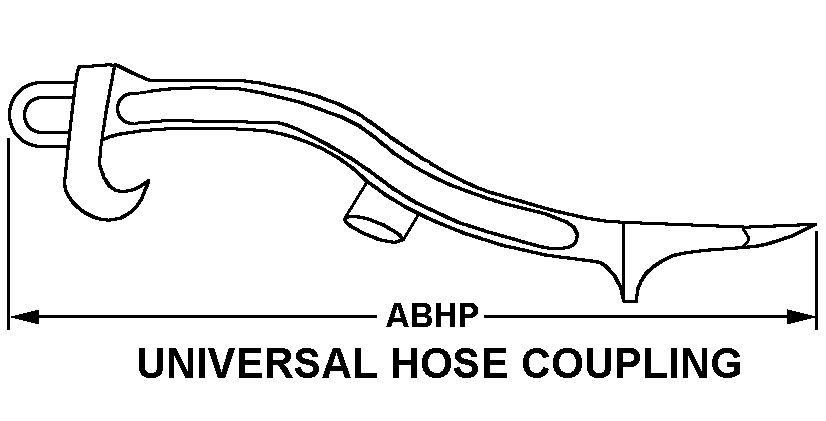

UNIVERSAL HOSE COUPLING
Cross Reference | NSN 5120-00-293-1602
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10 | 00912 | AKRON BRASS COMPANY |
| 0010-0P-0-1-94-001 | 00912 | AKRON BRASS COMPANY |
| STYLE10 | 00912 | AKRON BRASS COMPANY |
| 943A7534 | 0EXU3 | AQUA-CHEM, INC. |
| GGG-W-665 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-W-665 TY5 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| AS6018 TY5 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| 10A68-2330 | 26840 | HALE PRODUCTS, INC. |
| 874 | 30659 | MOON AMERICAN INC |
| AS6018 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Technical Data | NSN 5120-00-293-1602
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | UNIVERSAL HOSE COUPLING |
| OVERALL LENGTH | 11.000 INCHES NOMINAL |
| TORQUE CAPACITY | 1200.0 INCH-POUNDS NOMINAL |
| SPECIAL FEATURES | 8 OZ MINIMUM WEIGHT |
| SPECIFICATION/STANDARD DATA | 81343-SAE AS6018 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 5 TYPE |
