NSN 5120-00-293-1800
Part Details | OPEN END WRENCH
5120-00-293-1800 A nonadjustable wrench having an open end wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; WRENCH, LINEMAN'S; and WRENCH, BOX AND OPEN END, COMBINATION.
Alternate Parts: 63WRENCH, 63TOOL, W63, 5120-00-293-1800, 00-293-1800, 5120002931800, 002931800
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-293-1800 | 17182 ( WRENCH, OPEN END ) |

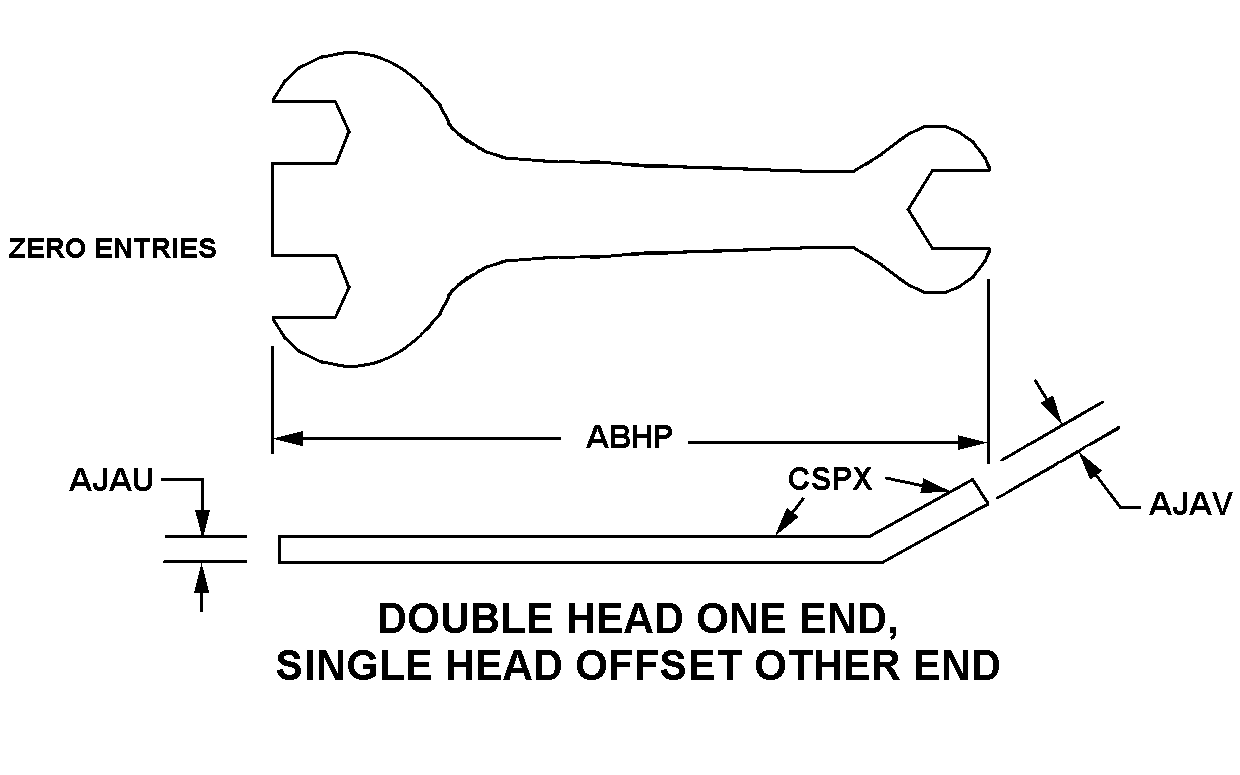

REFERENCE DRAWINGS & PICTURES
DOUBLE HEAD ONE END, SINGLE HEAD OFFSET OTHER END
Cross Reference | NSN 5120-00-293-1800
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 63WRENCH | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| 63TOOL | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| W63 | 27596 | JONARD INDUSTRIES CORPORATIONDBA JONARD TOOLS |
Technical Data | NSN 5120-00-293-1800
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DOUBLE HEAD ONE END, SINGLE HEAD OFFSET OTHER END |
| OVERALL LENGTH | 2.719 INCHES NOMINAL |
| LARGE END HEAD THICKNESS | 0.094 INCHES NOMINAL |
| SMALL END HEAD THICKNESS | 0.094 INCHES NOMINAL |
| WRENCHING END OFFSET ANGLE | 0.0 DEGREES NOMINAL |
