NSN 5120-00-293-2229
Part Details | SOCKET HEAD SCREW KEY
5120-00-293-2229 A hand tool designed to impart a rotary movement of force for installing or removing socket screw products. Excludes WRENCH, DRAIN PLUG; and WRENCH, BUNG.
Alternate Parts: 7605425, 5120-00-293-2229, 00-293-2229, 5120002932229, 002932229
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-293-2229 | 03519 ( KEY, SOCKET HEAD SCREW ) |
REFERENCE DRAWINGS & PICTURES

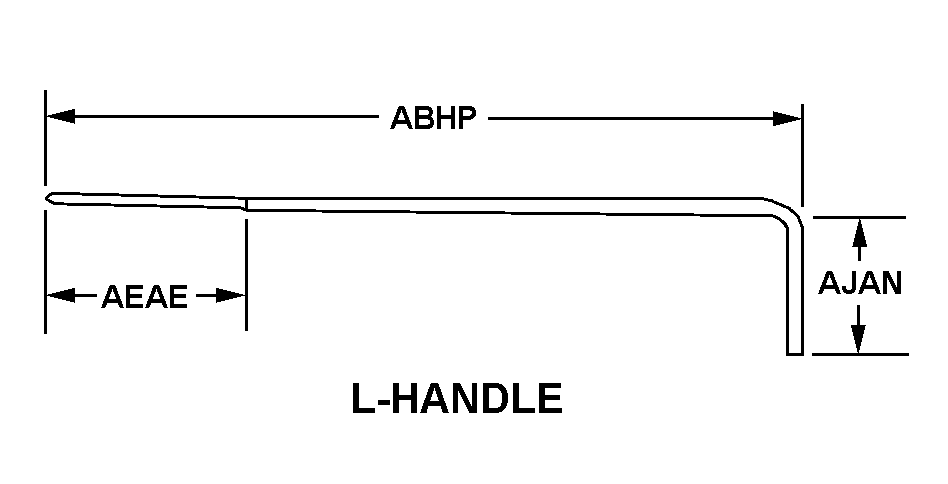

L-HANDLE
Cross Reference | NSN 5120-00-293-2229
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7605425 | 19200 | US ARMY ARDEC RDECOM |
Technical Data | NSN 5120-00-293-2229
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | L-HANDLE |
| OVERALL LENGTH | 9.468 INCHES NOMINAL |
| BLADE LENGTH | 0.594 INCHES NOMINAL |
| SHORT ARM LENGTH | 2.688 INCHES NOMINAL |
