NSN 5120-00-293-2279
Part Details | SPANNER WRENCH
5120-00-293-2279 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: 7637284, 5120-00-293-2279, 00-293-2279, 5120002932279, 002932279
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-293-2279 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

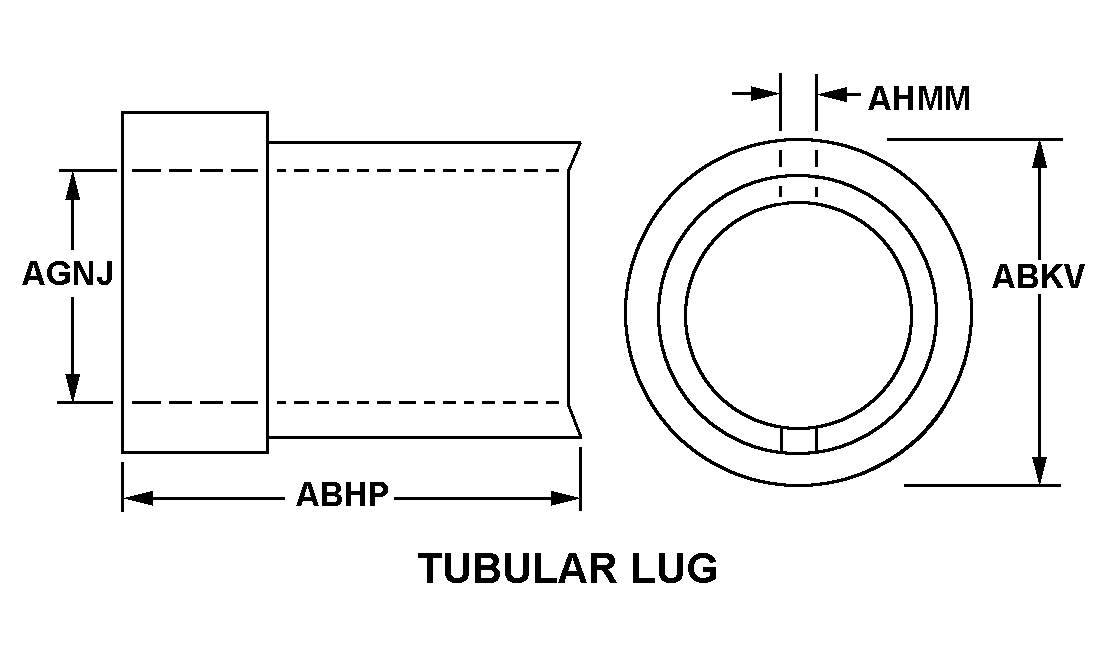

TUBULAR LUG
Cross Reference | NSN 5120-00-293-2279
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7637284 | 19200 | US ARMY ARDEC RDECOM |
Technical Data | NSN 5120-00-293-2279
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TUBULAR LUG |
| OVERALL LENGTH | 1.484 INCHES MINIMUM AND 1.515 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 1.760 INCHES MINIMUM AND 1.875 INCHES MAXIMUM |
| OPENING DIAMETER | 1.625 INCHES MINIMUM AND 1.628 INCHES MAXIMUM |
| LUG WIDTH | 0.044 INCHES MINIMUM AND 0.046 INCHES MAXIMUM |
| SPECIAL FEATURES | HARDNESS ROCKWELL C47 TO C53 |
