NSN 5120-00-293-2285
Part Details | SPANNER WRENCH
5120-00-293-2285 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: WA2572, 5120-00-293-2285, 00-293-2285, 5120002932285, 002932285
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-293-2285 | 03476 ( WRENCH, SPANNER ) |

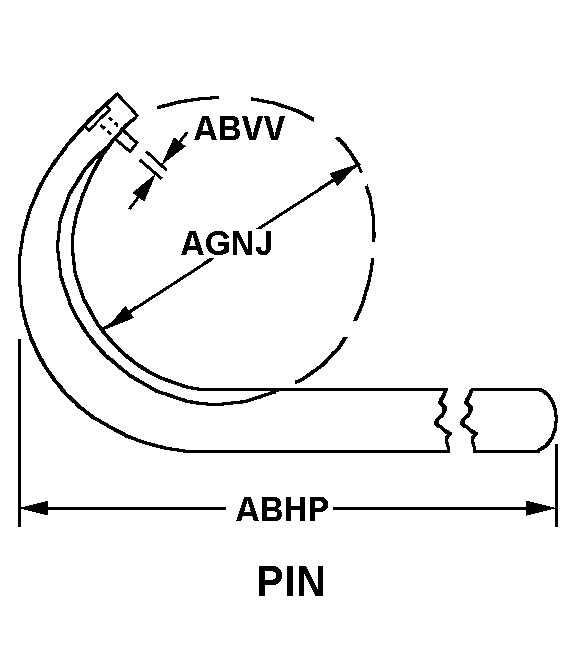

REFERENCE DRAWINGS & PICTURES
PIN
Cross Reference | NSN 5120-00-293-2285
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WA2572 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 5120-00-293-2285
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PIN |
| OVERALL LENGTH | 10.719 INCHES NOMINAL |
| PIN DIAMETER | 0.250 INCHES NOMINAL |
| OPENING DIAMETER | 3.838 INCHES NOMINAL |
| FEATURES PROVIDED | REPLACEABLE WRENCHING FEATURE |
