NSN 5220-00-724-4655
Part Details | PLAIN ADJUSTABLE SNAP GAGE
5220-00-724-4655 A gage used for the control of specified external dimensions. It consists of a frame and gaging members such as buttons, pins, blades and anvil. The gaging members may be set and locked to specified maximum and minimum limits within the given size range of the gage.
Alternate Parts: 7244655, 5220-00-724-4655, 00-724-4655, 5220007244655, 007244655
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | JAN 01, 1963 | 00-724-4655 | 15350 ( GAGE, SNAP, PLAIN ADJUSTABLE ) |
REFERENCE DRAWINGS & PICTURES

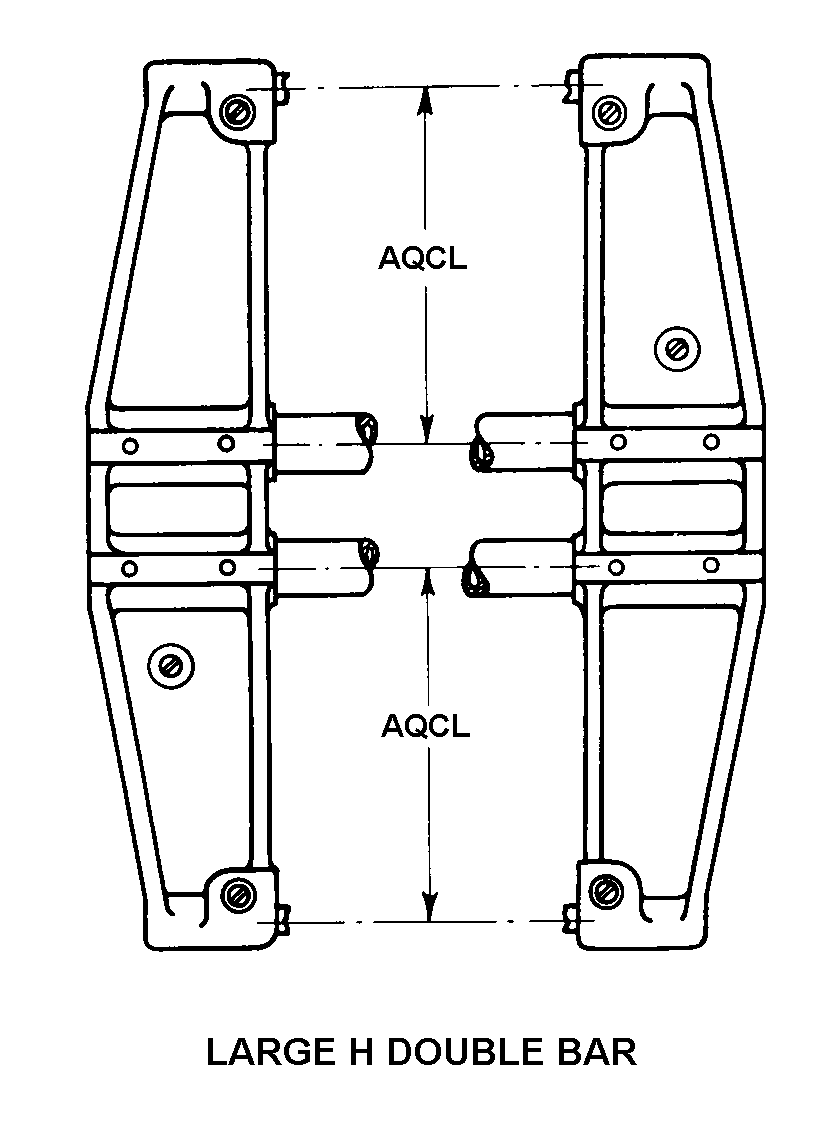

LARGE H DOUBLE BAR
Cross Reference | NSN 5220-00-724-4655
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7244655 | 19206 | ARMY, UNITED STATES DEPARTMENT OFTHE |
Technical Data | NSN 5220-00-724-4655
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | LARGE H DOUBLE BAR |
| GAGING MEMBER NAME AND STYLE NUMBER | 2 BLADE |
| GAGING MEMBER QUANTITY | 2 |
