NSN 5220-00-981-7010
Part Details | PLAIN CYLINDRICAL PLUG GAGING MEMBER
5220-00-981-7010 An accurately finished element of a gage which is used for the dimensional control of the diameter of a specified hole.
Alternate Parts: ST715, 11600065, 5220-00-981-7010, 00-981-7010, 5220009817010, 009817010
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | JAN 01, 1962 | 00-981-7010 | 15348 ( GAGING MEMBER, PLUG, PLAIN CYLINDRICAL ) |

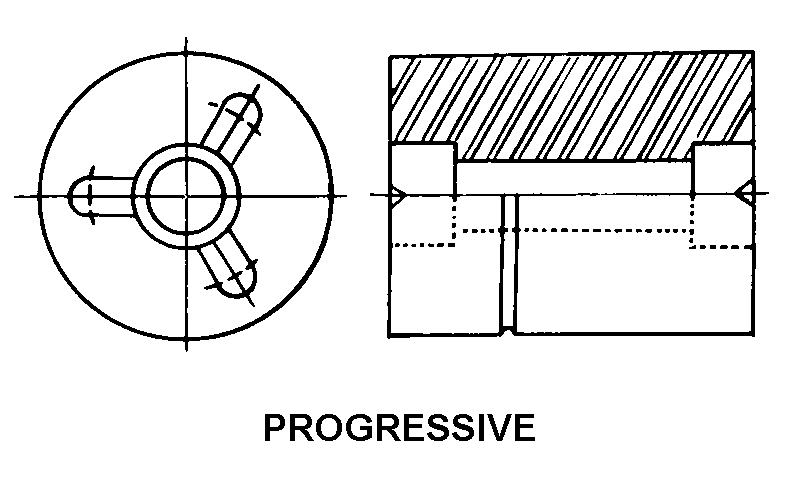

REFERENCE DRAWINGS & PICTURES
PROGRESSIVE
Cross Reference | NSN 5220-00-981-7010
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ST715 | 15434 | CUMMINS INC. |
| 11600065 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5220-00-981-7010
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PROGRESSIVE |
| GAGE TYPE | COMBINATION PROGRESSIVE GO NOT GO |
| GAGING MEMBER OUTSIDE DIAMETER | 1.7510 INCHES AND 1.7515 INCHES |
| GAGING MEMBER OUTSIDE DIAMETER TOLERANCE | -0.0000 TO +0.0005 INCHES |
