NSN 5305-00-017-7018
Part Details | TAPPING SCREW
5305-00-017-7018 A hardened externally threaded fastener whose thread extends to the bearing surface of the head. The thread may be fluted or otherwise designed to cut or form its own mating thread. Excludes SCREW, ASSEMBLED WASHER.
Alternate Parts: FFS107, FF-S-107, 177018, 5305-00-017-7018, 00-017-7018, 5305000177018, 000177018
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-017-7018 | 41756 ( SCREW, TAPPING ) |
REFERENCE DRAWINGS & PICTURES
HEXAGON COUNTERSUNK
CROSS RECESS TYPE 1

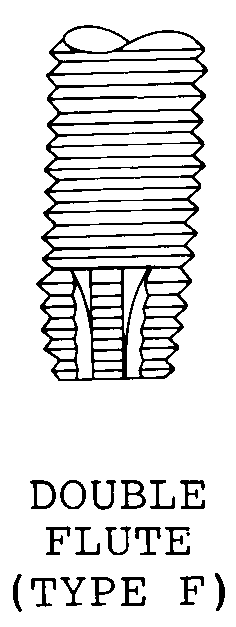

DOUBLE FLUTE (TYPE F)
Cross Reference | NSN 5305-00-017-7018
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FF-S-107 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| 177018 | 38597 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
Technical Data | NSN 5305-00-017-7018
| Characteristic | Specifications |
|---|---|
| NONMACHINE THREAD STYLE | DOUBLE FLUTE (TYPE F) |
| NONMACHINE NOMINAL THREAD DIAMETER | 0.190 INCHES |
| FASTENER LENGTH | 1.250 INCHES NOMINAL |
| HEAD STYLE | 0 HEXAGON COUNTERSUNK |
| HEAD DIAMETER | 0.359 INCHES MINIMUM AND 0.395 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 80.0 DEGREES MINIMUM AND 82.0 DEGREES MAXIMUM |
| INTERNAL DRIVE STYLE | 4 CROSS RECESS TYPE 1 |
| FEATURES PROVIDED | CASEHARDENED |
| NONDEFINITIVE SPEC/STD DATA | CS TYPE AND 2S STYLE |
