NSN 5305-00-019-5863
Part Details | SETSCREW
5305-00-019-5863 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Alternate Parts: M1643, 5305-00-019-5863, 00-019-5863, 5305000195863, 000195863
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-019-5863 | 06672 ( SETSCREW ) |
REFERENCE DRAWINGS & PICTURES
HEXAGON

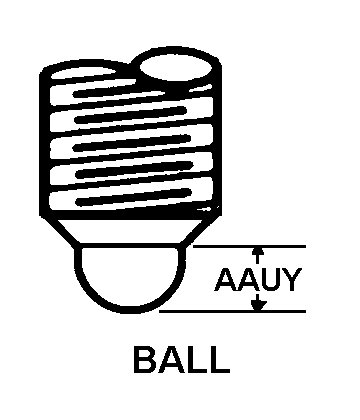

BALL
CROSS RECESS TYPE II
Cross Reference | NSN 5305-00-019-5863
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M1643 | 98810 | AEROSONIC LLC |
Technical Data | NSN 5305-00-019-5863
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.099 INCHES |
| THREAD QUANTITY PER INCH | 56 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.500 INCHES MINIMUM |
| FASTENER LENGTH | 0.750 INCHES NOMINAL |
| HEAD STYLE | HEXAGON |
| HEAD HEIGHT | 0.062 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.125 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | 1 CROSS RECESS TYPE II |
| POINT STYLE | BALL |
| POINT LENGTH | 0.250 INCHES NOMINAL |
