NSN 5305-00-025-7392
Part Details | SETSCREW
5305-00-025-7392 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Alternate Parts: A88322581, A8832258-1, A88322581, A8832258-1, 5305-00-025-7392, 00-025-7392, 5305000257392, 000257392
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-025-7392 | 06672 ( SETSCREW ) |
REFERENCE DRAWINGS & PICTURES
CROWNED HEXAGON

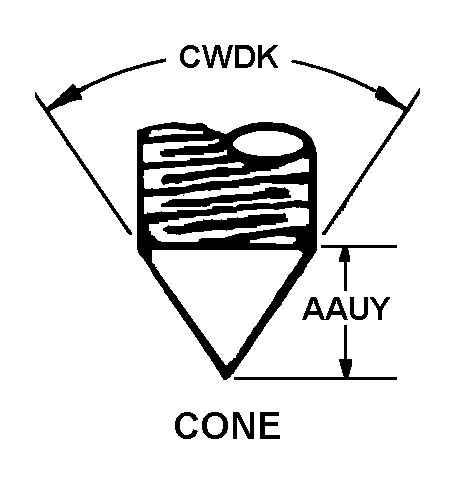

CONE
CROSS RECESS TYPE 1
Cross Reference | NSN 5305-00-025-7392
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A8832258-1 | 49671 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| A8832258-1 | 21921 | RCA CORPDISTRIBUTOR AND SPECIAL PRODUCTS DIV |
Technical Data | NSN 5305-00-025-7392
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.312 INCHES MAXIMUM |
| FASTENER LENGTH | 0.500 INCHES NOMINAL |
| HEAD STYLE | 9 CROWNED HEXAGON |
| HEAD DIAMETER | 0.500 INCHES NOMINAL |
| HEAD HEIGHT | 0.188 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | 4 CROSS RECESS TYPE 1 |
| POINT STYLE | CONE |
| POINT LENGTH | 0.165 INCHES NOMINAL |
| POINT CHAMFER ANGLE | 30.0 DEGREES NOMINAL |
