NSN 5305-00-051-0327

Part Details | MACHINE SCREW

5305-00-051-0327 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Alternate Parts: R1062P7, R1062P7, 41062P7, 5305-00-051-0327, 00-051-0327, 5305000510327, 000510327

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
53JAN 01, 196100-051-032706657 ( SCREW, MACHINE )
REFERENCE DRAWINGS & PICTURES

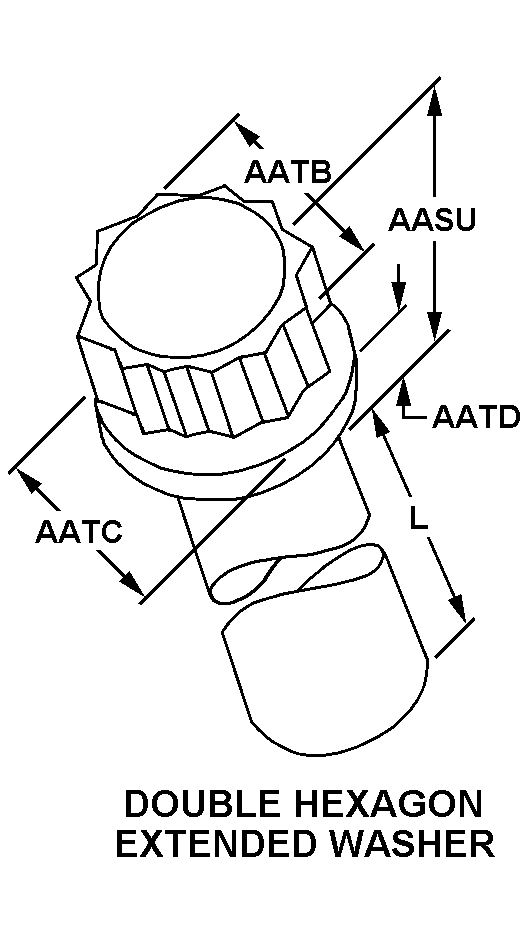

DOUBLE HEXAGON EXTENDED WASHER

Cross Reference | NSN 5305-00-051-0327
Part Number Cage Code Manufacturer
R1062P724446GENERAL ELECTRIC COMPANY
R1062P799207GENERAL ELECTRIC COMPANYDBA GE
41062P703350GENERAL ELECTRIC COMPANYDBA GE STRUCTURED SERVICES DIV
Technical Data | NSN 5305-00-051-0327
Characteristic Specifications
THREAD SERIES DESIGNATOR UNF
NOMINAL THREAD DIAMETER0.164 INCHES
THREAD QUANTITY PER INCH36
THREAD CLASS3A
THREAD DIRECTION RIGHT-HAND
THREAD LENGTH0.562 INCHES MINIMUM
FASTENER LENGTH0.562 INCHES NOMINAL
SCREW MATERIAL STEEL COMP 601
SCREW MATERIAL DOCUMENT AND CLASSIFICATIONAMS 6304 ASSN STD SINGLE MATERIAL RESPONSE
HARDNESS RATINGRCB32.0 ROCKWELL C MAXIMUM AND 34.0 ROCKWELL C MAXIMUM
HEAD STYLE DOUBLE HEXAGON EXTENDED WASHER
HEAD HEIGHT0.250 INCHES NOMINAL
WIDTH BETWEEN FLATS0.216 INCHES NOMINAL
EXTENDED WASHER DIAMETER0.312 INCHES NOMINAL
EXTENDED WASHER THICKNESS0.035 INCHES NOMINAL
