NSN 5305-00-051-4276
Part Details | EYE SCREW
5305-00-051-4276 A fastening device with one end formed in the shape of an eye and the other end threaded with a lag or wood screw type of thread.
Alternate Parts: 5320012, 532001-2, 5305-00-051-4276, 00-051-4276, 5305000514276, 000514276
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAY 16, 1967 | 00-051-4276 | 12947 ( SCREW, EYE ) |
REFERENCE DRAWINGS & PICTURES
NARROW FLUTE (TYPE E)

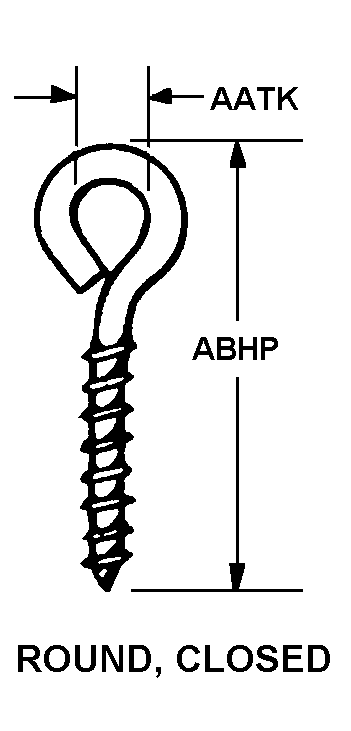

ROUND, CLOSED
Cross Reference | NSN 5305-00-051-4276
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 532001-2 | 49033 | ENTRUST DATACARD CORPORATIONDBA ENTRUST DATACARD |
Technical Data | NSN 5305-00-051-4276
| Characteristic | Specifications |
|---|---|
| NONMACHINE THREAD STYLE | 5 NARROW FLUTE (TYPE E) |
| NONMACHINE NOMINAL THREAD DIAMETER | 0.125 INCHES |
| STYLE DESIGNATOR | ROUND, CLOSED |
| EYE INSIDE DIAMETER | 0.165 INCHES NOMINAL |
| SPECIAL FEATURES | FASTENER LENGTH IS 1.090 INCHES |
