NSN 5305-00-153-8517

Part Details | MACHINE SCREW

5305-00-153-8517 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Alternate Parts: N187P16010C, 5305-00-153-8517, 00-153-8517, 5305001538517, 001538517

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
53OCT 22, 197100-153-851706657 ( SCREW, MACHINE )
REFERENCE DRAWINGS & PICTURES

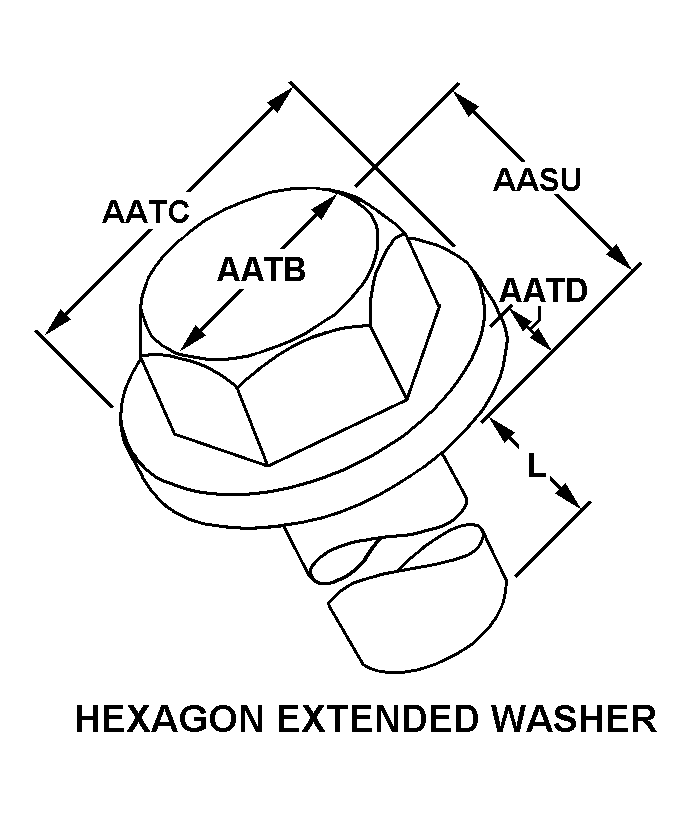

HEXAGON EXTENDED WASHER

CROSS RECESS TYPE 1

Cross Reference | NSN 5305-00-153-8517
Part Number Cage Code Manufacturer
N187P16010C97993GENERAL DYNAMICS DEFENSE SYSTEMSINC.
Technical Data | NSN 5305-00-153-8517
Characteristic Specifications
THREAD SERIES DESIGNATOR UNF
NOMINAL THREAD DIAMETER0.190 INCHES
THREAD QUANTITY PER INCH32
THREAD CLASS2A
THREAD DIRECTION RIGHT-HAND
THREAD LENGTH0.532 INCHES MINIMUM AND 0.625 INCHES MAXIMUM
FASTENER LENGTH0.594 INCHES MINIMUM AND 0.625 INCHES MAXIMUM
SCREW MATERIAL STEEL
SCREW SURFACE TREATMENT CADMIUM
HEAD STYLE HEXAGON EXTENDED WASHER
HEAD HEIGHT0.124 INCHES MINIMUM AND 0.151 INCHES MAXIMUM
WIDTH BETWEEN FLATS0.305 INCHES MINIMUM AND 0.312 INCHES MAXIMUM
EXTENDED WASHER DIAMETER0.384 INCHES MINIMUM AND 0.414 INCHES MAXIMUM
EXTENDED WASHER THICKNESS0.019 INCHES MINIMUM AND 0.031 INCHES MAXIMUM
INTERNAL DRIVE STYLE0 CROSS RECESS TYPE 1
PART NAME ASSIGNED BY CONTROLLING AGENCYNAVY SPECIAL PROJECT
