NSN 5305-00-206-1327
Part Details | ASSEMBLED WASHER SCREW
5305-00-206-1327 A SCREW, (as modified) to which has been assembled one or more nonremovable washer(s).
Alternate Parts: 92708, 7994215, 5305-00-206-1327, 00-206-1327, 5305002061327, 002061327
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-206-1327 | 06660 ( SCREW, ASSEMBLED WASHER ) |
REFERENCE DRAWINGS & PICTURES
HEXAGON
CROSS RECESS TYPE II

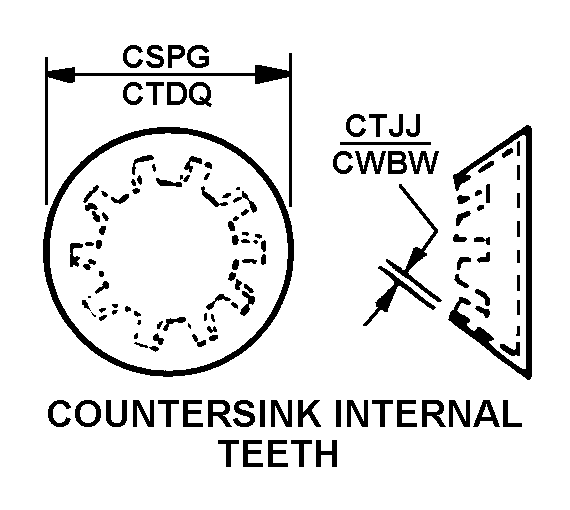

COUNTERSINK INTERNAL TEETH
COUNTERSINK INTERNAL TEETH
Cross Reference | NSN 5305-00-206-1327
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 92708 | 08645 | BRIGGS AND STRATTON CORP |
| 7994215 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5305-00-206-1327
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.853 INCHES MINIMUM |
| FASTENER LENGTH | 0.875 INCHES NOMINAL |
| HEAD STYLE | HEXAGON |
| HEAD HEIGHT | 0.094 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.250 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | 1 CROSS RECESS TYPE II |
| WASHER QUANTITY | 1 |
| PRIMARY WASHER STYLE | COUNTERSINK INTERNAL TEETH |
| PRIMARY WASHER OUTSIDE DIAMETER | 0.375 INCHES NOMINAL |
| PRIMARY WASHER MATERIAL THICKNESS | 0.022 INCHES NOMINAL |
