NSN 5306-00-195-4729
Part Details | TOGGLE BOLT
5306-00-195-4729 An externally threaded fastener whose threaded portion is of one nominal diameter having a wing or wings mounted on the bolt head or on a trunnion nut. The wing or wings upset when the toggle bolt is inserted in a constricted passage in a hollow wall and when the bolt is tightened, the wing or wings assume a transverse or athwart position. It is used for securely holding fixtures or devices to hollow walls.
Alternate Parts: FFB588, 5306-00-195-4729, 00-195-4729, 5306001954729, 001954729
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-195-4729 | 00799 ( BOLT, TOGGLE ) |
REFERENCE DRAWINGS & PICTURES

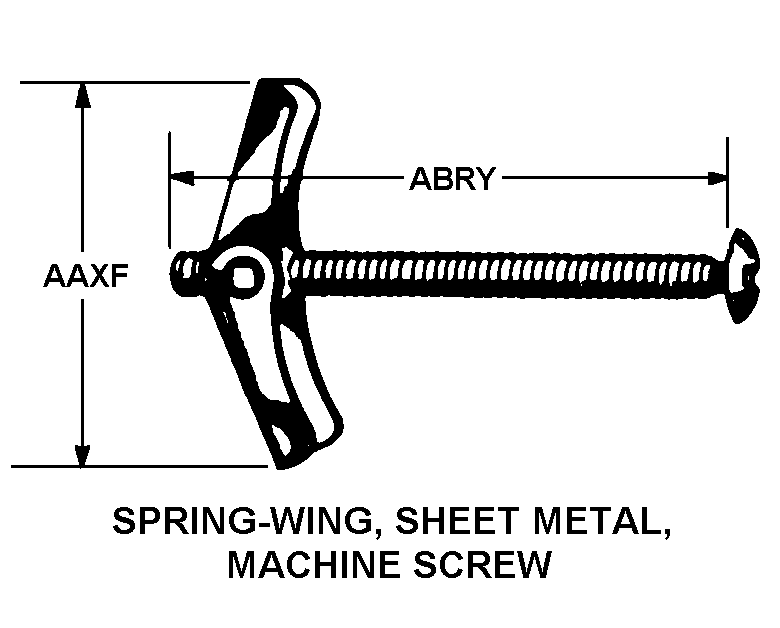

SPRING-WING, SHEET METAL, MACHINE SCREW
Cross Reference | NSN 5306-00-195-4729
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FFB588 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 5306-00-195-4729
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| STYLE DESIGNATOR | SPRING-WING, SHEET METAL, MACHINE SCREW |
| WING SPREAD WIDTH | 0.750 INCHES NOMINAL |
| LENGTH | 2.000 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND A CLASS AND 1 STYLE |
