NSN 5306-00-206-6337
Part Details | INTERNALLY RELIEVED BODY BOLT
5306-00-206-6337 An externally threaded fastener whose external threaded portion is of one nominal diameter. It has a concentric hole along the longitudinal centerline which may extend a part or the full length of the bolt. The concentric hole along the centerline may be counterbored and/or internally threaded at the head end or the bolt end. The head is designed to be held or driven by an external and/or internal driver. For items having a hole(s) perpendicular to the axis which meet the concentric hole along the longitudinal centerline, see BOLT, FLUID PASSAGE.
Alternate Parts: KF52743100SH4PC824, KF52-743-100SH4PC82-4, KF52743100SH4PC814, KF52-743-100SH4PC81-4, 22003167146PC824, 2200-3167146PC82-4, 22003167146PC814, 2200-3167146PC81-4, 21556, 2155-6, 21556, 2155-6, GLN151828338, GLN15182-833-8, CEGT90000113, CEGT90000-11-3, AUT0110340CA, 5306-00-206-6337, 00-206-6337, 5306002066337, 002066337
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-206-6337 | 06676 ( BOLT, INTERNALLY RELIEVED BODY ) |
REFERENCE DRAWINGS & PICTURES
HEXAGON

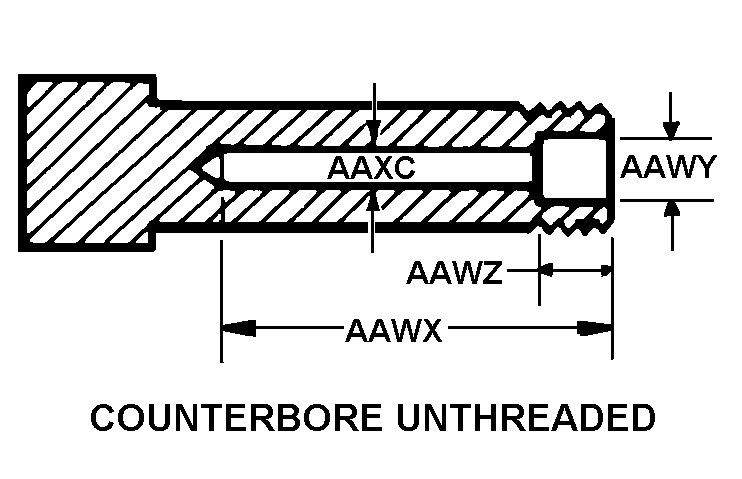

COUNTERBORE UNTHREADED
Cross Reference | NSN 5306-00-206-6337
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| KF52-743-100SH4PC82-4 | 04220 | GPE CONTROLS, INCDBA SHAND & JURS |
| KF52-743-100SH4PC81-4 | 04220 | GPE CONTROLS, INCDBA SHAND & JURS |
| 2200-3167146PC82-4 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 2200-3167146PC81-4 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 2155-6 | 41387 | SIEMENS INDUSTRY, INC.DBA SIEMENS ENERGY |
| 2155-6 | U2445 | SIEMENS MOORE PROCESS AUTOMATION |
| GLN15182-833-8 | 06659 | TESTEK, LLC |
| CEGT90000-11-3 | 06659 | TESTEK, LLC |
| AUT0110340CA | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
Technical Data | NSN 5306-00-206-6337
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.562 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.219 INCHES MINIMUM |
| FASTENER LENGTH | 0.328 INCHES NOMINAL |
| STYLE DESIGNATOR | COUNTERBORE UNTHREADED |
| CONCENTRIC HOLE DEPTH | 0.312 INCHES NOMINAL |
| COUNTERBORE DIAMETER | 0.219 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.250 INCHES NOMINAL |
| CONCENTRIC HOLE DIAMETER | 0.188 INCHES NOMINAL |
| HEAD STYLE | HEXAGON |
| HEAD HEIGHT | 0.234 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.750 INCHES NOMINAL |
| SPECIAL FEATURES | WASHER FACE BEARING SURFACE 0.016 IN. THK BY 0.688 IN. DIA |
