NSN 5306-00-208-1766
Part Details | BOLT BLANK
5306-00-208-1766 A cylindrical device having a head, eye or hook; similar to a BOLT, MACHINE; BOLT, EYE or BOLT, HOOK, and the like, but without threads, and normally intended for a subsequent threading operation.
Alternate Parts: D2648, D2648, 5306-00-208-1766, 00-208-1766, 5306002081766, 002081766
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-208-1766 | 01846 ( BOLT BLANK ) |
REFERENCE DRAWINGS & PICTURES

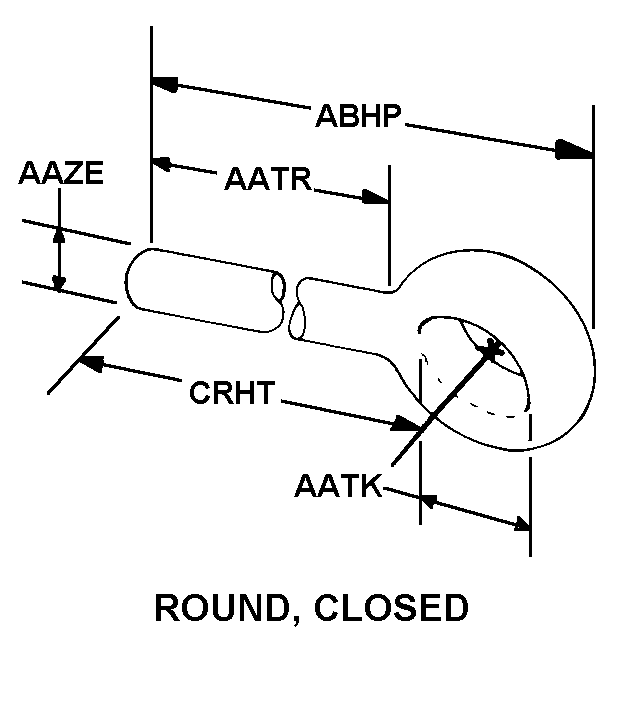

ROUND, CLOSED
Cross Reference | NSN 5306-00-208-1766
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| D2648 | 59690 | KOEHRING COLORAIN DIV |
| D2648 | 8E499 | KOEHRING CRANES AND EXCAVATORS INCSUB OF NORTHWEST ENGINEERING CO |
Technical Data | NSN 5306-00-208-1766
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ROUND, CLOSED |
| EYE INSIDE DIAMETER | 0.562 INCHES NOMINAL |
| SHANK LENGTH | 4.000 INCHES NOMINAL |
| EYE STOCK THICKNESS | 0.500 INCHES NOMINAL |
| SHANK DIAMETER | 0.500 INCHES NOMINAL |
| OVERALL LENGTH | 5.125 INCHES NOMINAL |
