NSN 5306-00-250-5487
Part Details | INTERNALLY RELIEVED BODY BOLT
5306-00-250-5487 An externally threaded fastener whose external threaded portion is of one nominal diameter. It has a concentric hole along the longitudinal centerline which may extend a part or the full length of the bolt. The concentric hole along the centerline may be counterbored and/or internally threaded at the head end or the bolt end. The head is designed to be held or driven by an external and/or internal driver. For items having a hole(s) perpendicular to the axis which meet the concentric hole along the longitudinal centerline, see BOLT, FLUID PASSAGE.
Alternate Parts: 8713862, 5306-00-250-5487, 00-250-5487, 5306002505487, 002505487
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | NOV 19, 1969 | 00-250-5487 | 06676 ( BOLT, INTERNALLY RELIEVED BODY ) |
REFERENCE DRAWINGS & PICTURES
HEXAGON

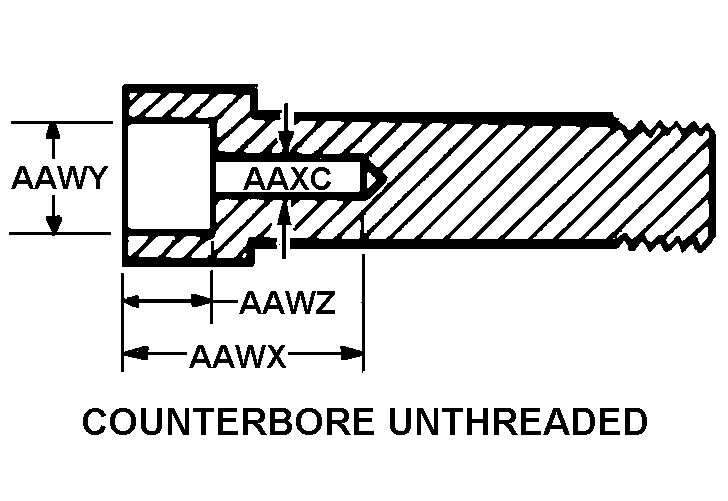

COUNTERBORE UNTHREADED
Cross Reference | NSN 5306-00-250-5487
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8713862 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5306-00-250-5487
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.938 INCHES MINIMUM |
| FASTENER LENGTH | 3.093 INCHES NOMINAL |
| STYLE DESIGNATOR | A COUNTERBORE UNTHREADED |
| CONCENTRIC HOLE DEPTH | 1.187 INCHES NOMINAL |
| CONCENTRIC HOLE DIAMETER | 0.312 INCHES NOMINAL |
| HEAD STYLE | HEXAGON |
| HEAD HEIGHT | 1.938 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.562 INCHES NOMINAL |
