NSN 5306-00-251-4217
Part Details | BOLT BLANK
5306-00-251-4217 A cylindrical device having a head, eye or hook; similar to a BOLT, MACHINE; BOLT, EYE or BOLT, HOOK, and the like, but without threads, and normally intended for a subsequent threading operation.
Alternate Parts: 9M380, 5306-00-251-4217, 00-251-4217, 5306002514217, 002514217
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUL 23, 1969 | 00-251-4217 | 01846 ( BOLT BLANK ) |
REFERENCE DRAWINGS & PICTURES

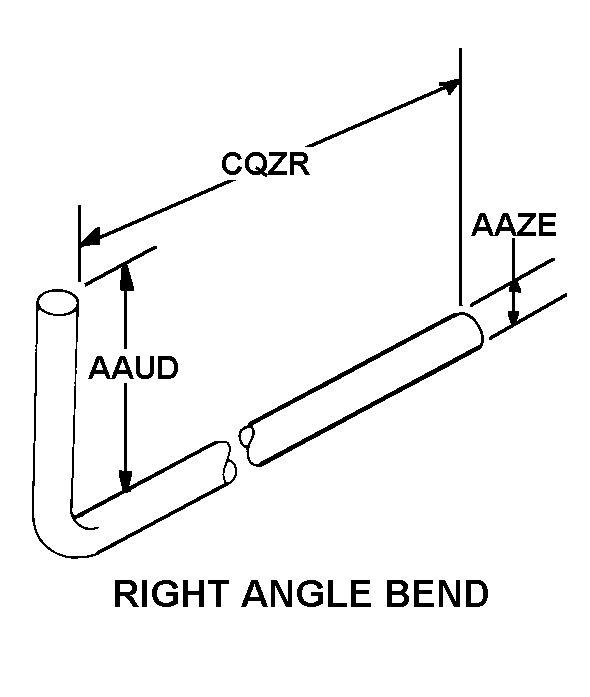

RIGHT ANGLE BEND
Cross Reference | NSN 5306-00-251-4217
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9M380 | 11083 | CATERPILLAR INC.DBA CATERPILLAR |
Technical Data | NSN 5306-00-251-4217
| Characteristic | Specifications |
|---|---|
| FASTENER LENGTH | 1.560 INCHES NOMINAL |
| STYLE DESIGNATOR | RIGHT ANGLE BEND |
| HOOK INSIDE WIDTH | 0.271 INCHES NOMINAL |
| DISTANCE FROM INSIDE OF BEND TO SHANK END | 1.501 INCHES NOMINAL |
