NSN 5306-00-272-3484
Part Details | BOLT BLANK
5306-00-272-3484 A cylindrical device having a head, eye or hook; similar to a BOLT, MACHINE; BOLT, EYE or BOLT, HOOK, and the like, but without threads, and normally intended for a subsequent threading operation.
Alternate Parts: 00495, 5306-00-272-3484, 00-272-3484, 5306002723484, 002723484
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-272-3484 | 01846 ( BOLT BLANK ) |
REFERENCE DRAWINGS & PICTURES
HEXAGON EXTENDED WASHER

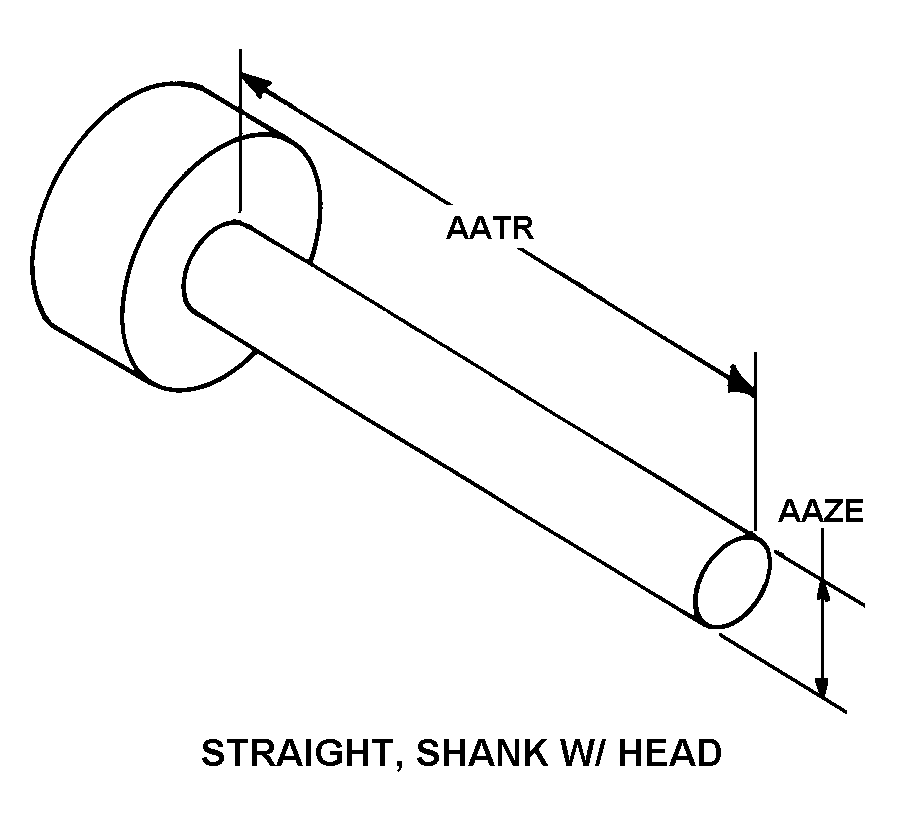

STRAIGHT, SHANK W/HEAD
Cross Reference | NSN 5306-00-272-3484
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 00495 | 14153 | DEFENSE LOGISTICS AGENCYDBA DEFENSE SUPPLY CENTER |
Technical Data | NSN 5306-00-272-3484
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT, SHANK W/HEAD |
| SHANK LENGTH | 4.313 INCHES NOMINAL |
| SHANK DIAMETER | 0.625 INCHES NOMINAL |
| HEAD STYLE | 1 HEXAGON EXTENDED WASHER |
| HEAD DIAMETER | 1.375 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.688 INCHES NOMINAL |
