NSN 5306-00-276-1394
Part Details | EYE BOLT
5306-00-276-1394 An externally threaded device whose threaded portion is of one nominal diameter, without a head, but with the unthreaded end either bent more than 225 degrees (3.925 radians) or cast, forged, or punched to resemble an eye. See also BOLT, HOOK. Excludes CONNECTOR, ROD END.
Alternate Parts: 00650, 5306-00-276-1394, 00-276-1394, 5306002761394, 002761394
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-276-1394 | 01853 ( BOLT, EYE ) |
REFERENCE DRAWINGS & PICTURES

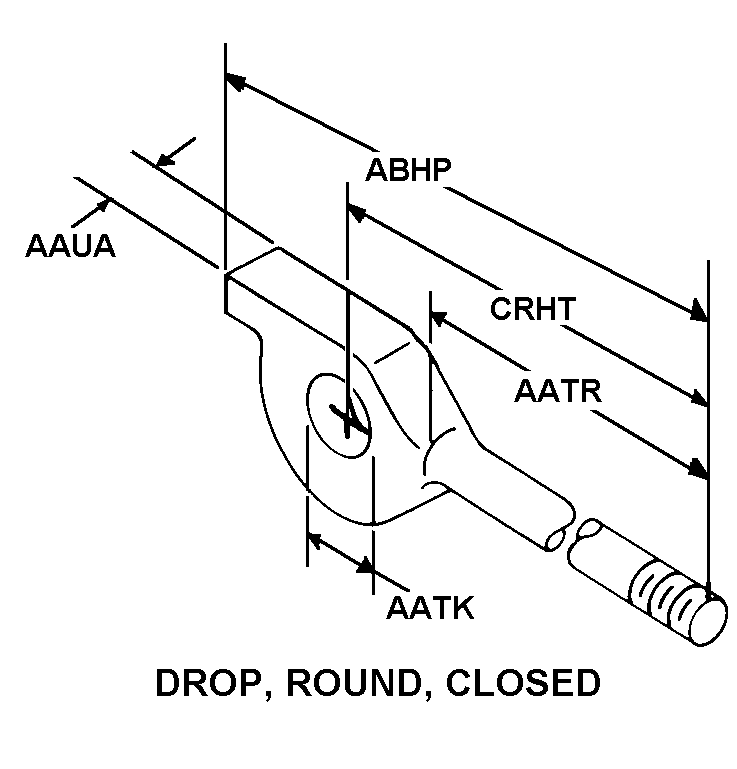

DROP, ROUND, CLOSED
Cross Reference | NSN 5306-00-276-1394
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 00650 | 14153 | DEFENSE LOGISTICS AGENCYDBA DEFENSE SUPPLY CENTER |
Technical Data | NSN 5306-00-276-1394
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | ACME |
| NOMINAL THREAD DIAMETER | 0.750 INCHES |
| THREAD QUANTITY PER INCH | 6 |
| THREAD CLASS | 2G |
| THREAD DIRECTION | RIGHT-HAND |
| STYLE DESIGNATOR | DROP, ROUND, CLOSED |
| EYE INSIDE DIAMETER | 0.500 INCHES NOMINAL |
| SHANK LENGTH | 4.062 INCHES NOMINAL |
| EYE STOCK THICKNESS | 0.750 INCHES NOMINAL |
| OVERALL LENGTH | 4.750 INCHES NOMINAL |
| SPECIAL FEATURES | W/DOG POINT 0.375 IN. DIA 0.500 IN. LG |
