NSN 5307-00-549-3459
Part Details | RECESSED STUD
5307-00-549-3459 A headless fastener not exceeding twelve inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. One end or both ends may have a point. The unthreaded section may have more than one diameter, none of which may be greater than the maximum major thread diameter. It may be thread relieved. Excludes items with taper threads.
Alternate Parts: 41001598, 5307-00-549-3459, 00-549-3459, 5307005493459, 005493459
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | OCT 12, 1974 | 00-549-3459 | 15945 ( STUD, RECESSED ) |
REFERENCE DRAWINGS & PICTURES

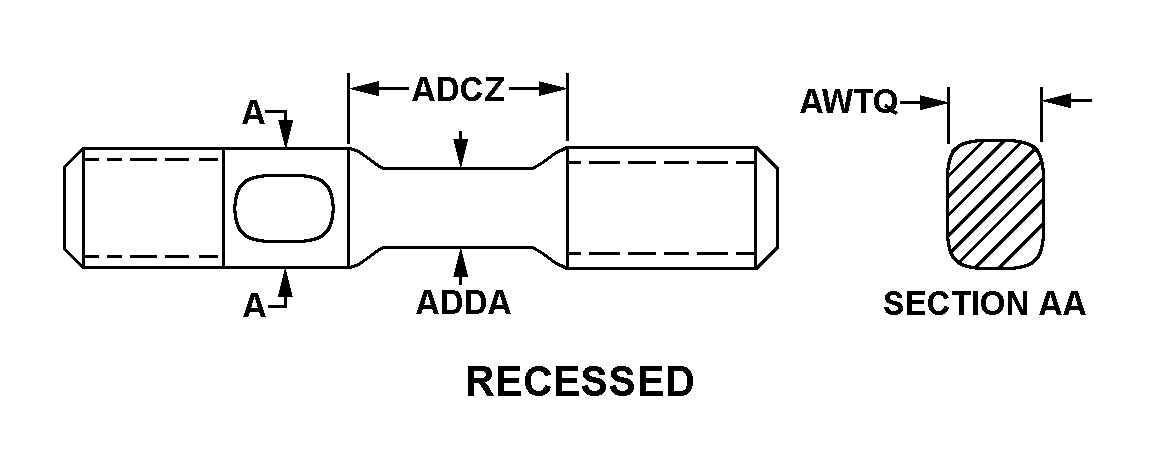

RECESSED
Cross Reference | NSN 5307-00-549-3459
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 41001598 | 81873 | WOODWARD HRT, INC. |
Technical Data | NSN 5307-00-549-3459
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| MATERIAL DOCUMENT AND CLASSIFICATION | BAMS 5659$CAMS 6543 AMERICAN SOCIETY FOR TESTING AND MATERIALS (ASTM) ALL MATERIAL RESPONSES |
| STYLE DESIGNATOR | RECESSED |
| LENGTH OF RECESSED PORTION OF SHANK | 0.400 INCHES NOMINAL |
| DIAMETER OF RECESSED PORTION OF SHANK | 0.312 INCHES MINIMUM AND 0.317 INCHES MAXIMUM |
| DISTANCE ACROSS FLATS | 0.250 INCHES NOMINAL |
| OVERALL LENGTH | 7.460 INCHES MINIMUM AND 7.464 INCHES MAXIMUM |
| SPECIAL FEATURES | THREE GROOVES 0.225 IN. DIA FOR TWO. ONE 0.200 IN. DIA |
