NSN 5307-00-567-7400
Part Details | WELDING STUD
5307-00-567-7400 A headed or headless fastener externally or internally threaded. It is intended for fastening by welding the head, unthreaded end or welding tip. If headed, the head is not designed to be self-holding, nor to be turned with a wrench or inserted driver, nor does the head have small raised projections on the top or underside to facilitate welding. See also BOLT, WELDING.
Alternate Parts: 101010117, 101-010-117, 5307-00-567-7400, 00-567-7400, 5307005677400, 005677400
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | NOV 28, 1974 | 00-567-7400 | 16944 ( STUD, WELDING ) |

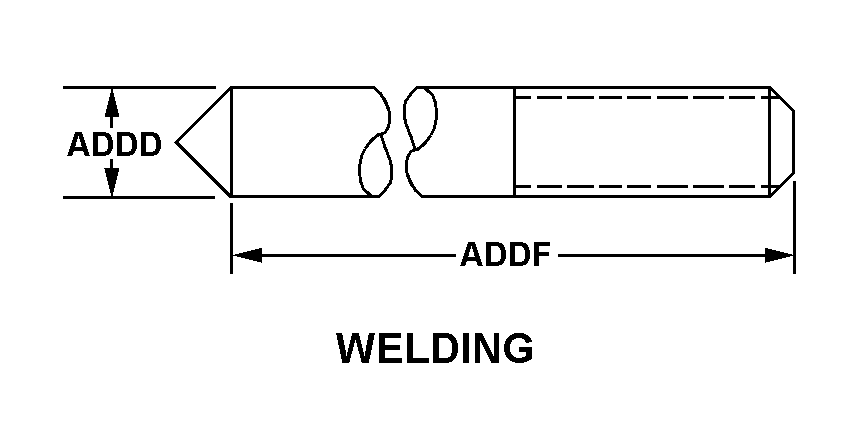

REFERENCE DRAWINGS & PICTURES
WELDING
Cross Reference | NSN 5307-00-567-7400
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 101-010-117 | 85105 | NELSON STUD WELDING, INC. |
Technical Data | NSN 5307-00-567-7400
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | WELDING |
| UNTHREADED END DIAMETER | 0.330 INCHES NOMINAL |
| LENGTH EXCLUDING FLUXED WELDING TIP | 0.125 INCHES NOMINAL |
