NSN 5307-00-612-4904
Part Details | BONDED STUD
5307-00-612-4904 A headed fastener, externally threaded. The head is intended to be fastened by an adhesive. The head may also be fastened with rivets. The head is not designed to be turned with a wrench or inserted driver.
Alternate Parts: 249483143, 249-48314-3, 5307-00-612-4904, 00-612-4904, 5307006124904, 006124904
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-612-4904 | 37234 ( STUD, BONDED ) |

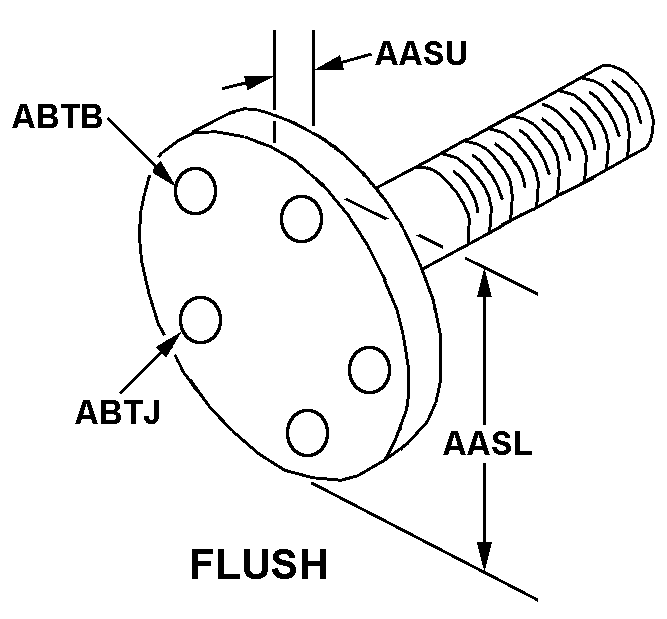

REFERENCE DRAWINGS & PICTURES
FLUSH
Cross Reference | NSN 5307-00-612-4904
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 249-48314-3 | 03950 | NAVAL INVENTORY CONTROL POINTMECHANICSBURG |
Technical Data | NSN 5307-00-612-4904
| Characteristic | Specifications |
|---|---|
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | FLUSH |
| HEAD DIAMETER | 0.875 INCHES NOMINAL |
| HEAD HEIGHT | 0.060 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.040 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 2 |
| OVERALL LENGTH | 0.750 INCHES NOMINAL |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | NAVY SPECIAL PROJECT |
