NSN 5307-00-730-3011
Part Details | RECESSED STUD
5307-00-730-3011 A headless fastener not exceeding twelve inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. One end or both ends may have a point. The unthreaded section may have more than one diameter, none of which may be greater than the maximum major thread diameter. It may be thread relieved. Excludes items with taper threads.
Alternate Parts: 382982, 5307-00-730-3011, 00-730-3011, 5307007303011, 007303011
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-730-3011 | 15945 ( STUD, RECESSED ) |

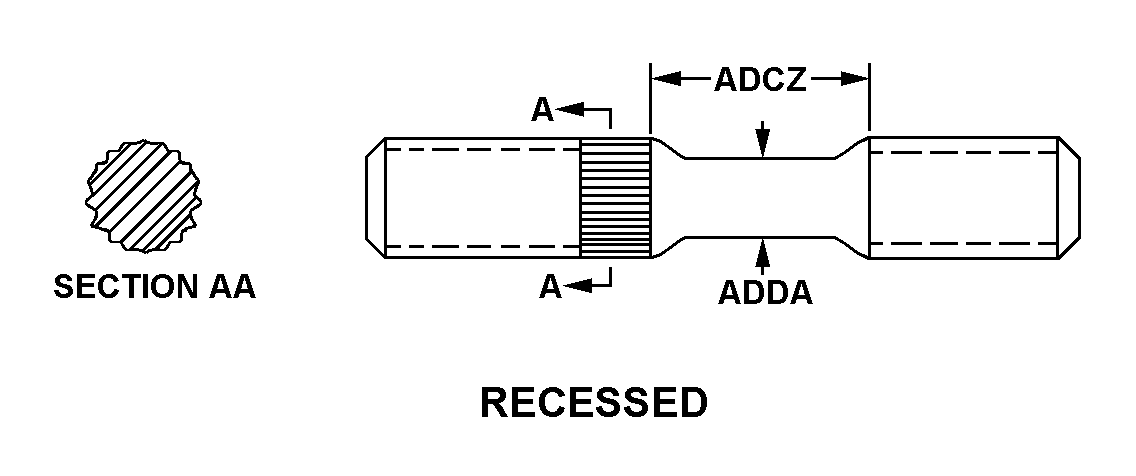

REFERENCE DRAWINGS & PICTURES
RECESSED
Cross Reference | NSN 5307-00-730-3011
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 382982 | 89305 | SIMMONDS PRECISION PRODUCTS INC |
Technical Data | NSN 5307-00-730-3011
| Characteristic | Specifications |
|---|---|
| MATERIAL | 2$DST0078$DST0079$DST0316 |
| STYLE DESIGNATOR | RECESSED |
| LENGTH OF RECESSED PORTION OF SHANK | 0.700 INCHES NOMINAL |
| DIAMETER OF RECESSED PORTION OF SHANK | 0.036 INCHES NOMINAL |
| OVERALL LENGTH | 1.100 INCHES NOMINAL |
