NSN 5307-00-736-9966
Part Details | BALL STUD
5307-00-736-9966 A metal item with a spherical shaped head and a straight and/or tapered body, usually with a threaded shank.
Alternate Parts: 7369966, 5307-00-736-9966, 00-736-9966, 5307007369966, 007369966
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-736-9966 | 17484 ( STUD, BALL ) |

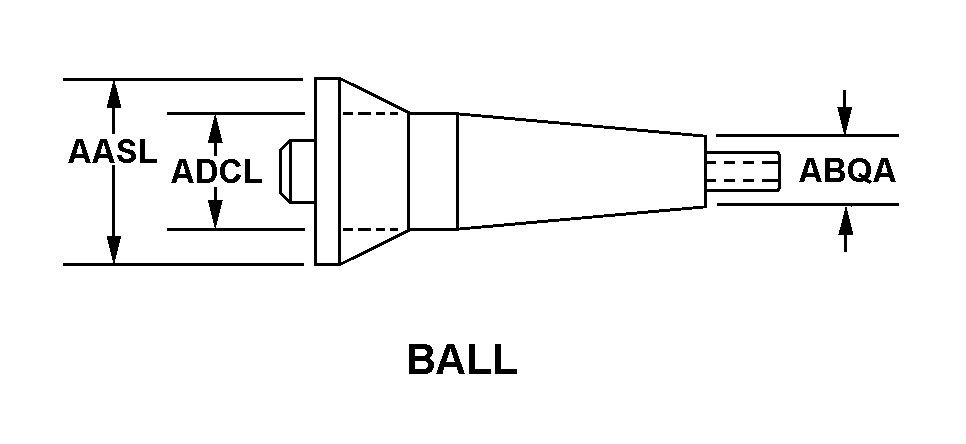

REFERENCE DRAWINGS & PICTURES
BALL
Cross Reference | NSN 5307-00-736-9966
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7369966 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5307-00-736-9966
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | BAISI8615H$CAISI8115 ALL MATERIAL RESPONSES |
| STYLE DESIGNATOR | BALL |
| HEAD DIAMETER | 1.563 INCHES MINIMUM AND 1.687 INCHES MAXIMUM |
| TAPER MINOR DIAMETER | 1.022 INCHES MINIMUM AND 1.024 INCHES MAXIMUM |
| BODY LENGTH | 4.608 INCHES NOMINAL |
| NECK DIAMETER | 1.249 INCHES MINIMUM AND 1.251 INCHES MAXIMUM |
| DISTANCE FROM SPHERICAL HEAD CENTERLINE TO HEAD END | 0.234 INCHES MINIMUM AND 0.359 INCHES MAXIMUM |
| OVERALL LENGTH | 4.891 INCHES MINIMUM AND 5.015 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.875 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 14 |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.125 INCHES |
| FEATURES PROVIDED | CASEHARDENED |
| SPECIAL FEATURES | SPHERICAL HEAD |
