NSN 5307-00-760-7236
Part Details | WELDING STUD
5307-00-760-7236 A headed or headless fastener externally or internally threaded. It is intended for fastening by welding the head, unthreaded end or welding tip. If headed, the head is not designed to be self-holding, nor to be turned with a wrench or inserted driver, nor does the head have small raised projections on the top or underside to facilitate welding. See also BOLT, WELDING.
Alternate Parts: 10875378, 10875378, 5307-00-760-7236, 00-760-7236, 5307007607236, 007607236
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAR 01, 1968 | 00-760-7236 | 16944 ( STUD, WELDING ) |

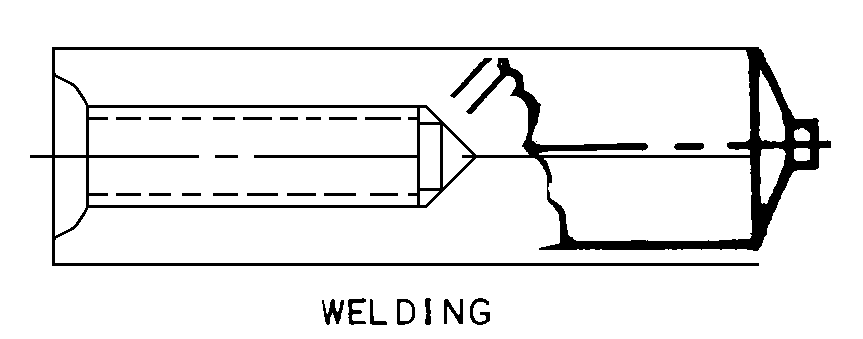

REFERENCE DRAWINGS & PICTURES
WELDING
Cross Reference | NSN 5307-00-760-7236
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10875378 | T0720 | FNSS SAVUNMA SISTEMLERI A.S. |
| 10875378 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5307-00-760-7236
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-24149 MIL SPEC SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | WELDING |
| BODY DIAMETER | 0.500 INCHES NOMINAL |
| LENGTH EXCLUDING FLUXED WELDING TIP | 1.125 INCHES NOMINAL |
| FEATURES PROVIDED | HEAT SHIELD |
