NSN 5307-00-798-3018
Part Details | SELF-LOCKING STUD
5307-00-798-3018 A headed fastener threaded externally on a portion or on the full length of the shank. The head has projections on the underside or periphery, or is otherwise designed to be mechanically pressed and embedded in a metallic panel, or the like. It is securely locked in position by the displaced metal. For items that require locking rings, see BOLT, SELF-LOCKING and STUD, LOCKED IN. Excludes INSERT, SCREW THREAD.
Alternate Parts: 2947263, 29-4726-3, 2947263, 29-4726-3, 5307-00-798-3018, 00-798-3018, 5307007983018, 007983018
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1962 | 00-798-3018 | 27783 ( STUD, SELF-LOCKING ) |
REFERENCE DRAWINGS & PICTURES

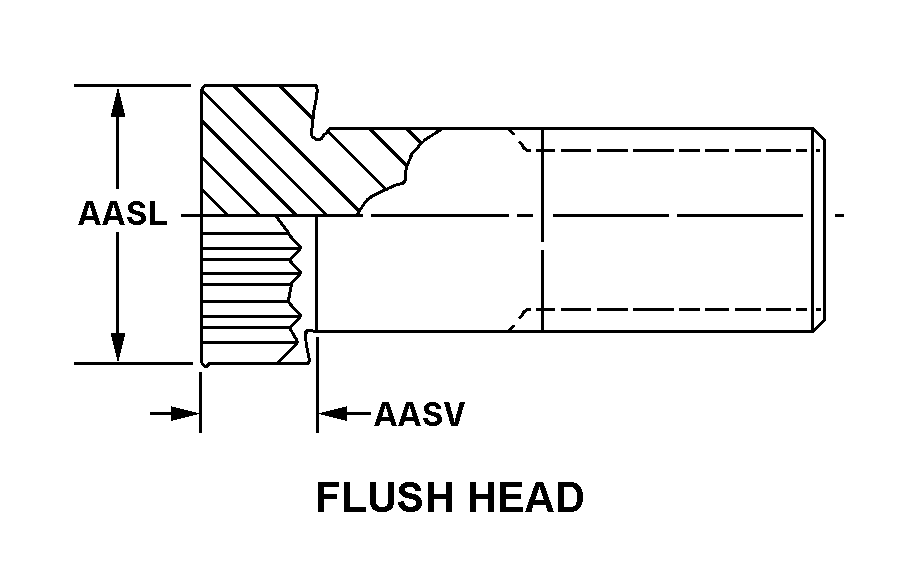

FLUSH HEAD
Cross Reference | NSN 5307-00-798-3018
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 29-4726-3 | 82918 | BOEING COMPANY, THEDBA BOEING |
| 29-4726-3 | 81205 | THE BOEING COMPANYDBA BOEING |
Technical Data | NSN 5307-00-798-3018
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | FLUSH HEAD |
| HEAD DIAMETER | 0.450 INCHES NOMINAL |
| HEAD LENGTH | 0.450 INCHES NOMINAL |
| OVERALL LENGTH | 1.0270 INCHES NOMINAL |
| LOCKING FEATURE | J ANY ACCEPTABLE |
