NSN 5307-00-839-9048
Part Details | SELF-LOCKING STUD
5307-00-839-9048 A headed fastener threaded externally on a portion or on the full length of the shank. The head has projections on the underside or periphery, or is otherwise designed to be mechanically pressed and embedded in a metallic panel, or the like. It is securely locked in position by the displaced metal. For items that require locking rings, see BOLT, SELF-LOCKING and STUD, LOCKED IN. Excludes INSERT, SCREW THREAD.
Alternate Parts: S58, 5307-00-839-9048, 00-839-9048, 5307008399048, 008399048
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1962 | 00-839-9048 | 27783 ( STUD, SELF-LOCKING ) |
REFERENCE DRAWINGS & PICTURES

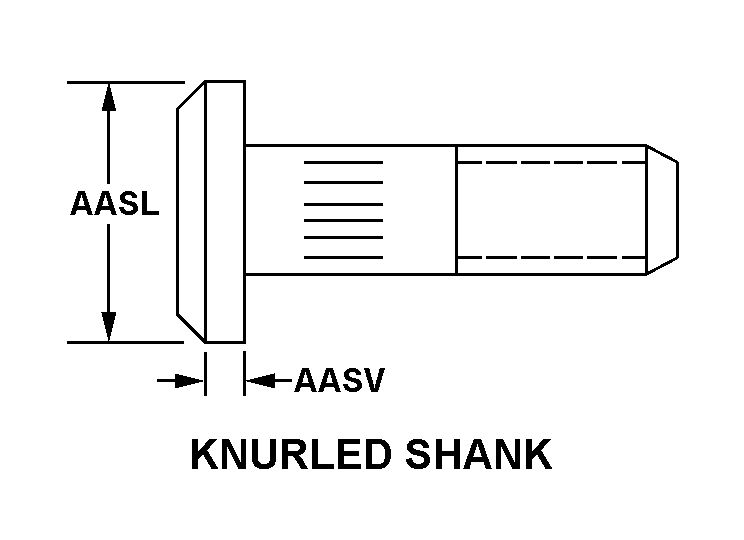

KNURLED SHANK
Cross Reference | NSN 5307-00-839-9048
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S58 | 73809 | GENEVA METAL WHEEL CO |
Technical Data | NSN 5307-00-839-9048
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1022 |
| STYLE DESIGNATOR | KNURLED SHANK |
| HEAD DIAMETER | 0.802 INCHES MINIMUM AND 0.822 INCHES MAXIMUM |
| HEAD LENGTH | 0.235 INCHES MINIMUM AND 0.245 INCHES MAXIMUM |
| OVERALL LENGTH | 2.110 INCHES MINIMUM AND 2.120 INCHES MAXIMUM |
| LOCKING FEATURE | KNURLED SHANK |
| FEATURES PROVIDED | CASEHARDENED |
| SPECIAL FEATURES | 14 TEETH PER INCH KNURL ON SHANK FOR DRIVE FIT IN 0.531 IN. DIA. HOLE IN CAST IRON |
